8D713Z26AN

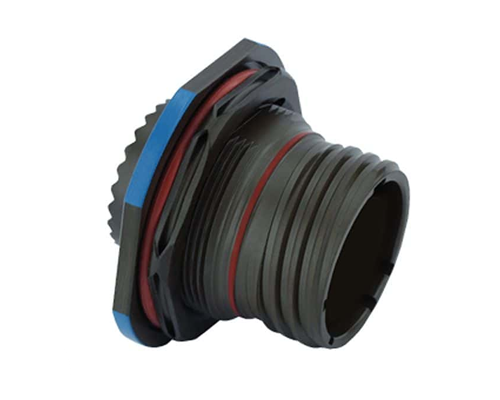

8D713Z26AN Jam Nut Receptacle, Shell Size 13 with Black Zinc Nickel Plating (Z), 2 #12, 6#22D Less Pin Contacts.
| RoHS: Yes Delivery: 48 Hour Build |
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 2#12, 6#22D |
| Contacts Supplied | No |
| Insert Keyway | N |
| Insert Arrangement | 13-26 |
| No of Contacts | 8 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Black Zinc Nickel (Z) |
| Shell Size | 13 (C) |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 2.5 mΩ |
| Shielding | 85 db at 1 GHz |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
