8D715F18SN

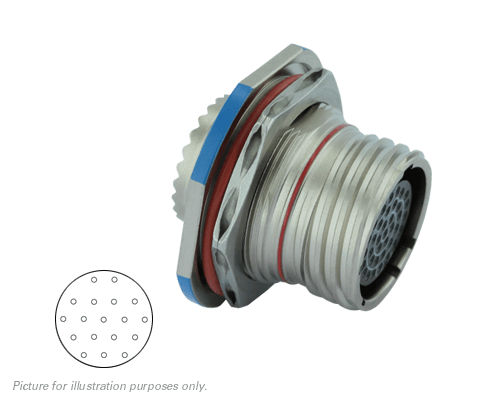

8D715F18SN, Jam Nut Receptacle, Shell Size 15 with Nickel Plating (F), 18 #20 Socket Contact.
| RoHS: Yes Delivery: 48 Hour Build |
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 18#20 |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 15-18 |
| No of Contacts | 18 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Nickel (F) |
| Shell Size | 15 (D) |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 1 mΩ |
| Shielding | 65 db at 10 GHz |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
