8D715W18AA

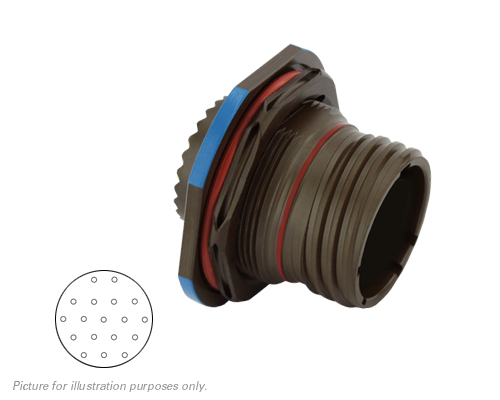

8D715W18AA, Jam Nut Receptacle, Shell Size 15 with Olive Drab Cadmium (W) Plating, 18 #20 Less Pin Contacts, A Orientation.
| RoHS: Yes Delivery: 48 Hour Build |
RoHS Compliant: No
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 18#20 |
| Contacts Supplied | No |
| Insert Keyway | A |
| Insert Arrangement | 15-18 |
| No of Contacts | 18 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Cadmium Olive Drab (W) |
| Shell Size | 15 (D) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | No |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
