8D715ZC15AN

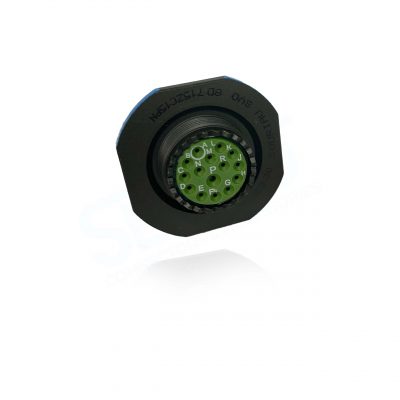

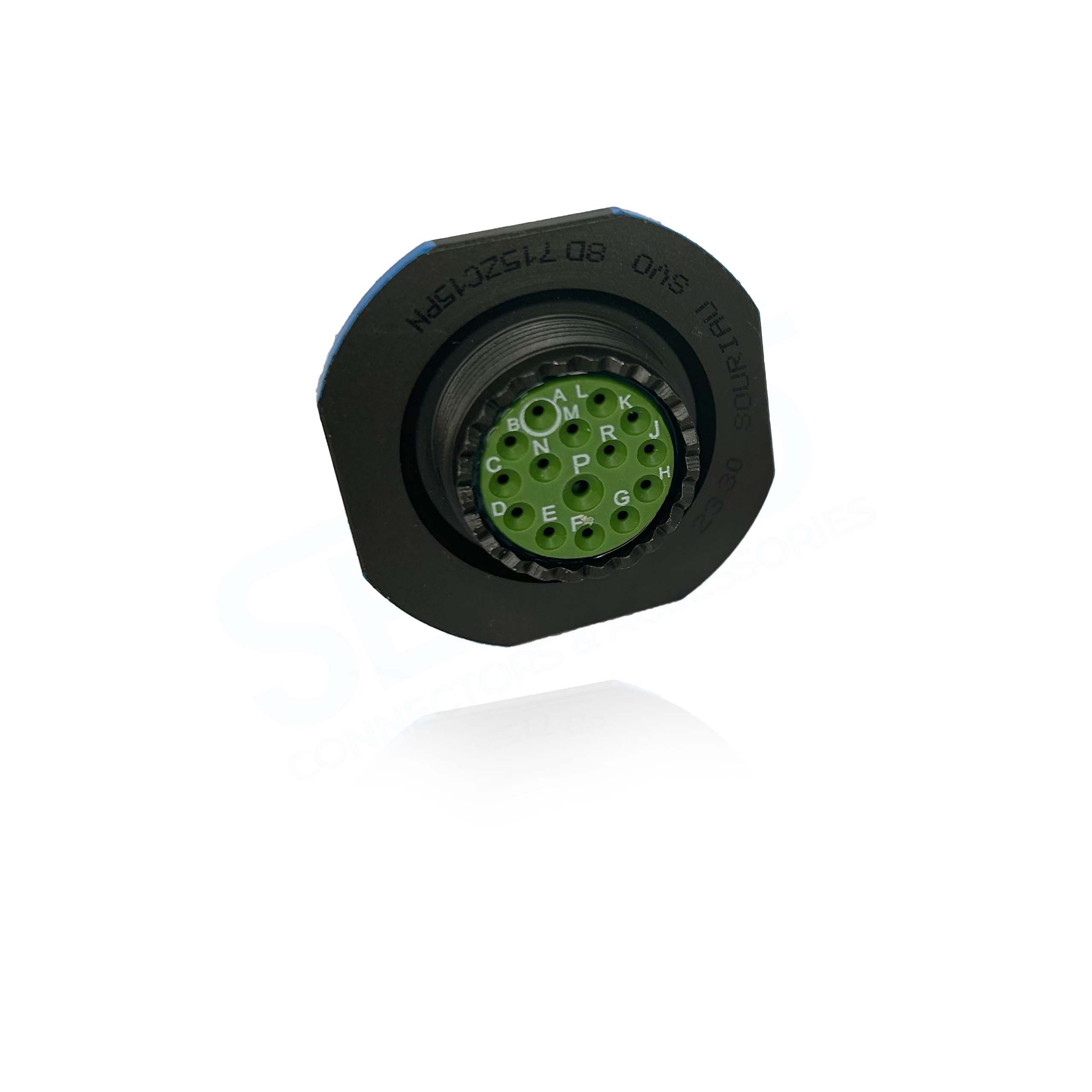

8D715ZC15AN, Jam Nut Receptacle, Shell Size 15 with Green Zinc Colbalt Plating (ZC), 1#16, 14#20 Less Pin Contacts
| RoHS: Yes Delivery: 48 Hour Build |
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 1#16, 14#20 |
| Contacts Supplied | No |
| Insert Keyway | AN |
| Insert Arrangement | 15-15 |
| No of Contacts | 15 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Green Zinc Cobalt (ZC) |
| Shell Size | 15 (D) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
