8D717F75PA251

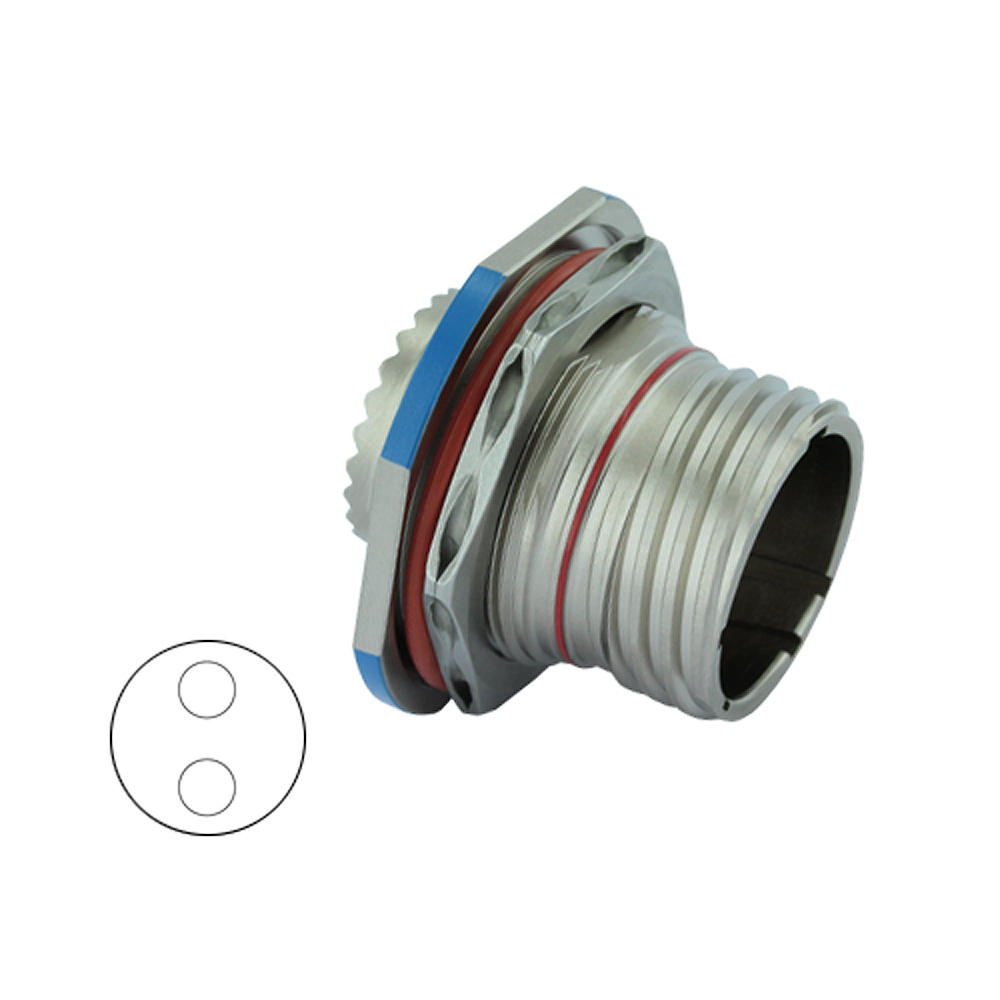

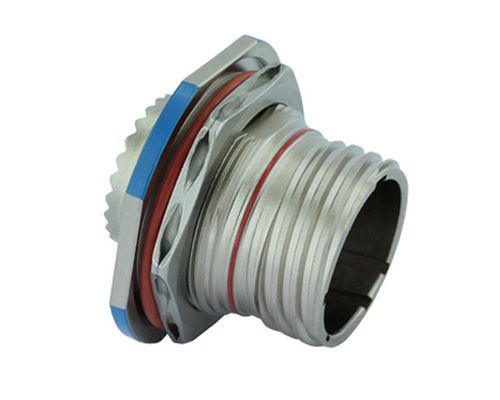

The Eaton Souriau 8D717F75PA251 is an 8D Series III commercial circular connector. featuring a Size 17 Aluminium Alloy shell with Nickel plating, and 2#8 POWER Male Pins in A orientation. Ideal for Aerospace, Armoured Vehicles, Energy, Helicopter, Industrial, Maritime, Military and Naval applications. This connector is engineered for robust performance in industrial and commercial systems.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 2#8 |
| Contacts Supplied | Yes |
| Insert Keyway | A |
| Insert Arrangement | 17-75 |
| No of Contacts | 2 |
| Shell Material | Aluminium Alloy, Aluminium with Nickel Plating |
| Shell Plating | Nickel |
| Shell Size | 17 |
| Termination Method | Crimp, Power |
| Mating Cycles | 500 |
| Shell Continuity | 1 mΩ |
| Shielding | 65 db at 10 GHz |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Salt Spray | 48 Hours |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 48 Hours |
