8D717K08SA

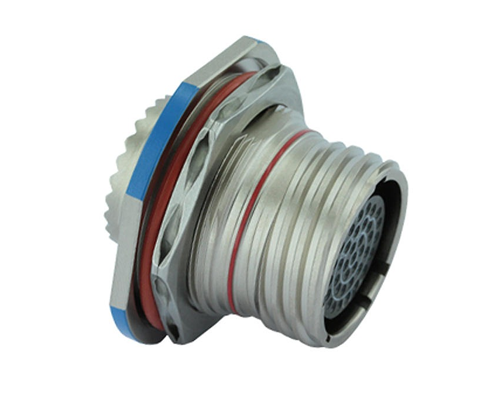

Eaton Souriau 8D717K08SA 8D Series III Jam Nut Receptacle, Shell Size 17 with Stainless Steel Passivated Plating, 8#16 Female Sockets Contacts, A Orientation. Ideal for Aerospace, Industrial, Military.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 8#16 |
| Contacts Supplied | Yes |
| Insert Keyway | A |
| Insert Arrangement | 17-08 |
| No of Contacts | 8 |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated (K) |
| Shell Size | 17, 17 (E) |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 10 mΩ |
| Shielding | 45 db at 10 GHz |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 72 Hours |
