8D717W06SA

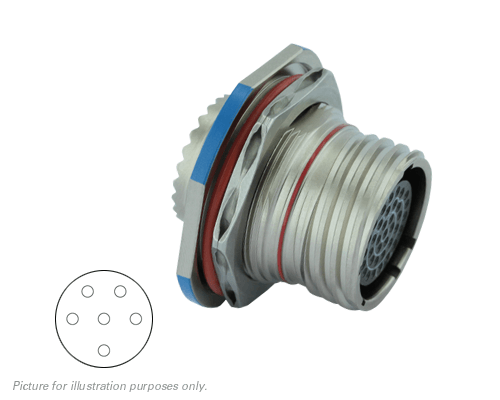

8D717W06SA, Jam Nut Receptacle, Shell Size 17 with Olive Drab Cadmium (W) Plating, 6#12 Socket Contacts, A Orientation.
| RoHS: Yes Delivery: 48 Hour Build |
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 6#12 |
| Contacts Supplied | Yes |
| Insert Keyway | A |
| Insert Arrangement | 17-06 |
| No of Contacts | 6 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Cadmium Olive Drab (W) |
| Shell Size | 17 (E) |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 2.5 mΩ |
| Shielding | 50 db at 10 GHz |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | No |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
