8D719K35PN

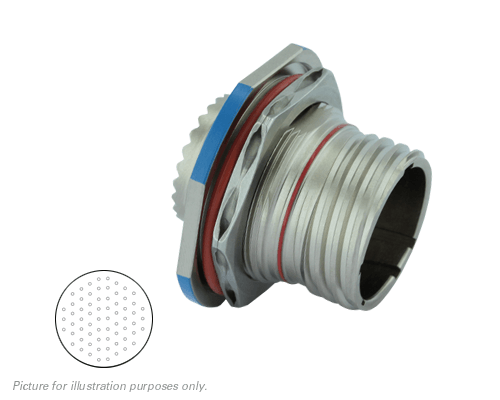

Eaton Souriau 8D719K35PN 8D Series III Jam Nut Receptacle, Shell Size 19 with Stainless Steel Passivated Plating, Unknown Male Pins Contacts, N Orientation. Ideal for Aerospace, Industrial, Military.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 66#22D |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 19-35 |
| No of Contacts | 66 |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated (K) |
| Shell Size | 19, 19 (F) |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 10 mΩ |
| Shielding | 45 db at 10 GHz |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Salt Spray | 500 Hours |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 72 Hours |
