8D719Z11PN

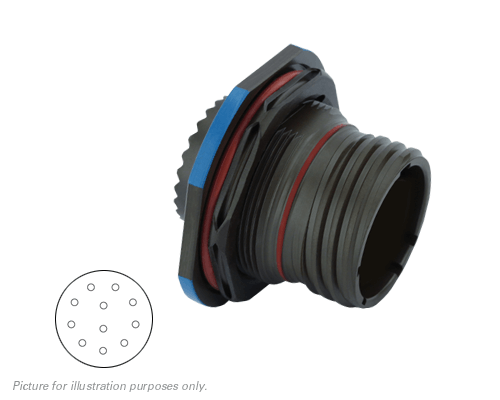

8D719Z11PN, Jam Nut Receptacle, Shell Size 19 with Black Zinc Nickel Plating (Z), 11#16 Pin Contacts
| RoHS: Yes Delivery: 48 Hour Build |
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 11#16 |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 19-11 |
| No of Contacts | 11 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Black Zinc Nickel (Z) |
| Shell Size | 11 (B) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
