8D723W53BA

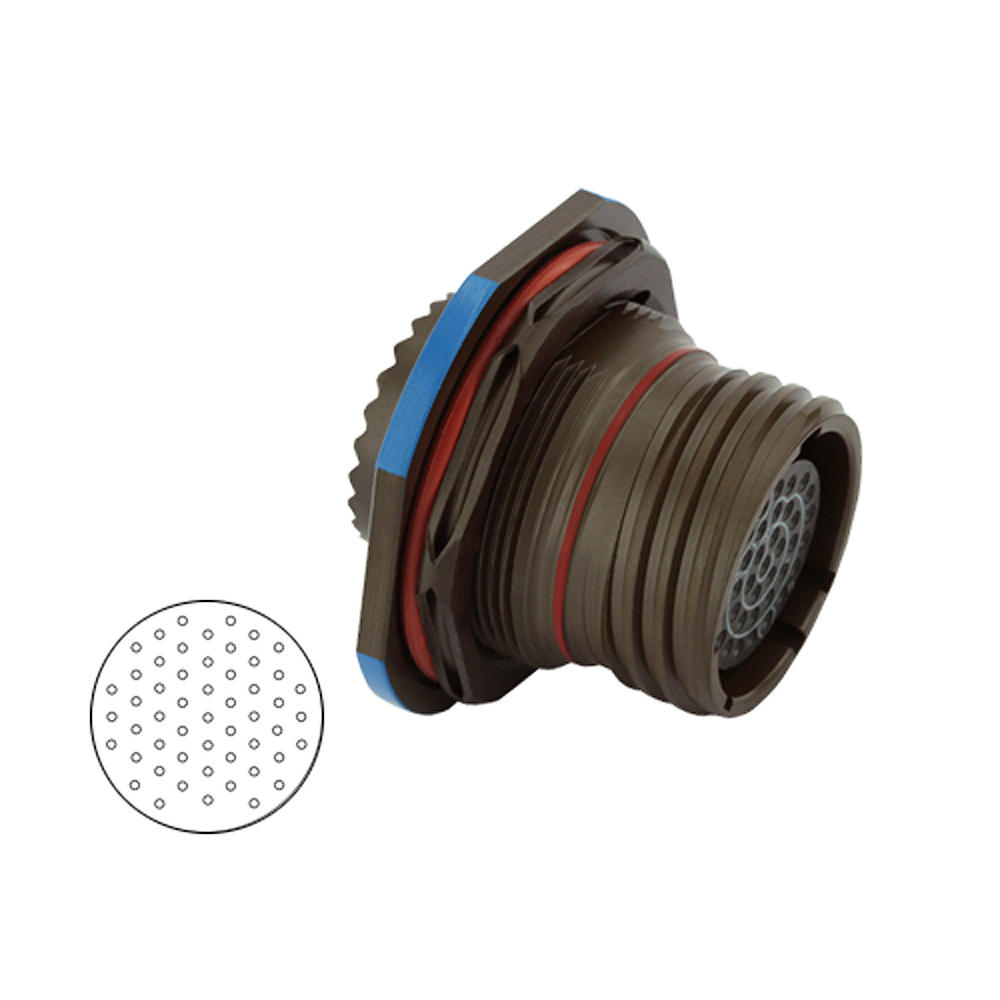

Eaton Souriau 8D723W53BA 8D Series III Jam Nut Receptacle, Shell Size 23 with Aluminium Alloy Olive Drab Cadmium Plating, 53#20 Less Sockets Contacts, A Orientation. Ideal for Aerospace, Industrial, Military.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Socket – Female, Less Socket Contacts |
| Contact Size | 53#20 |
| Contacts Supplied | No |
| Insert Keyway | A |
| Insert Arrangement | 23-53 |
| No of Contacts | 53 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Cadmium Olive Drab (W), Olive Drab Cadmium |
| Shell Size | 23, 23 (H) |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 2.5 mΩ |
| Shielding | 50 db at 10 GHz, 85 db at 1 GHz |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | No |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 48 Hours |
