8D723ZC35AN

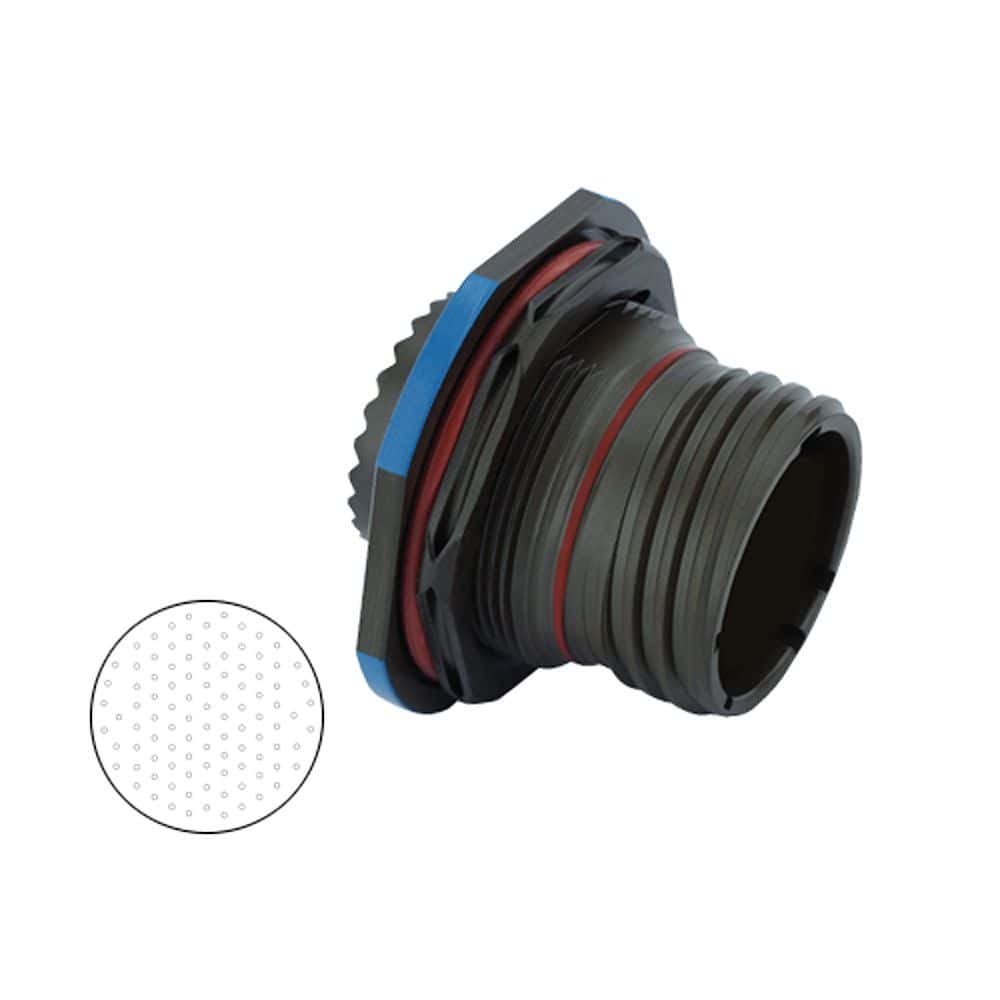

The Eaton Souriau 8D723ZC35AN is an 8D Series III commercial circular connector. Featuring a Size 23 Aluminium Alloy shell with Green Zinc Cobalt plating, and 100#22D Less Pins in N orientation. Ideal for Aerospace, Military, Industrial, Energy, Maritime and Naval applications. This connector is engineered for robust performance in industrial and commercial systems.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Less Pin Contacts |
| Contacts Supplied | No |
| Insert Keyway | N |
| Insert Arrangement | 23-35 |
| No of Contacts | 100 |
| Shell Material | Aluminium Alloy |
| Shell Size | 23 |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 2.5 mΩ |
| Shielding | Consult Manufacturer |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | No |
| Salt Spray | 250 Hours |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 48 Hours |
