8D725F44PB

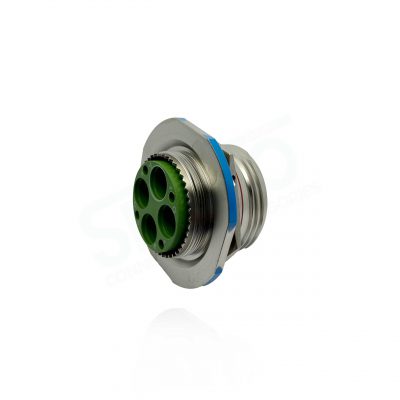

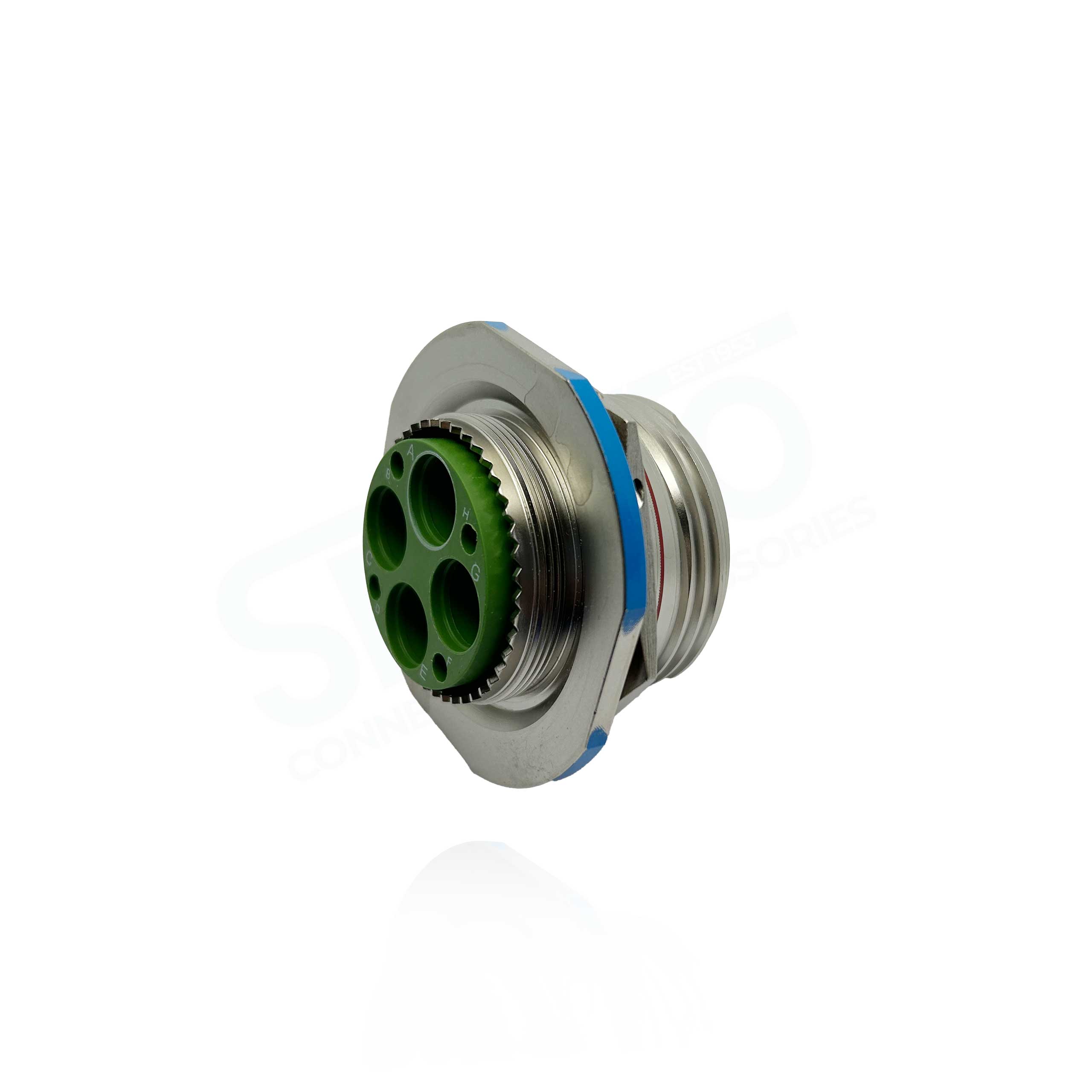

Eaton Souriau 8D725F44PB 8D Series III Jam Nut Receptacle, Shell Size 25 with Aluminium Alloy Nickel Plating, 4#16,4#4 POWER Male Pins Contacts, B Orientation. Ideal for Aerospace, Industrial, Military.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 4#4 POWER, 4#16 |
| Contacts Supplied | Yes |
| Insert Keyway | B |
| Insert Arrangement | 25-44 |
| No of Contacts | 8 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Nickel, Nickel (F) |
| Shell Size | 25, 25 (J) |
| Termination Method | Power |
| Mating Cycles | 500 |
| Shell Continuity | 1 mΩ |
| Shielding | 65 db at 10 GHz |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Salt Spray | 48 Hours |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 48 Hours |
