Eaton Souriau

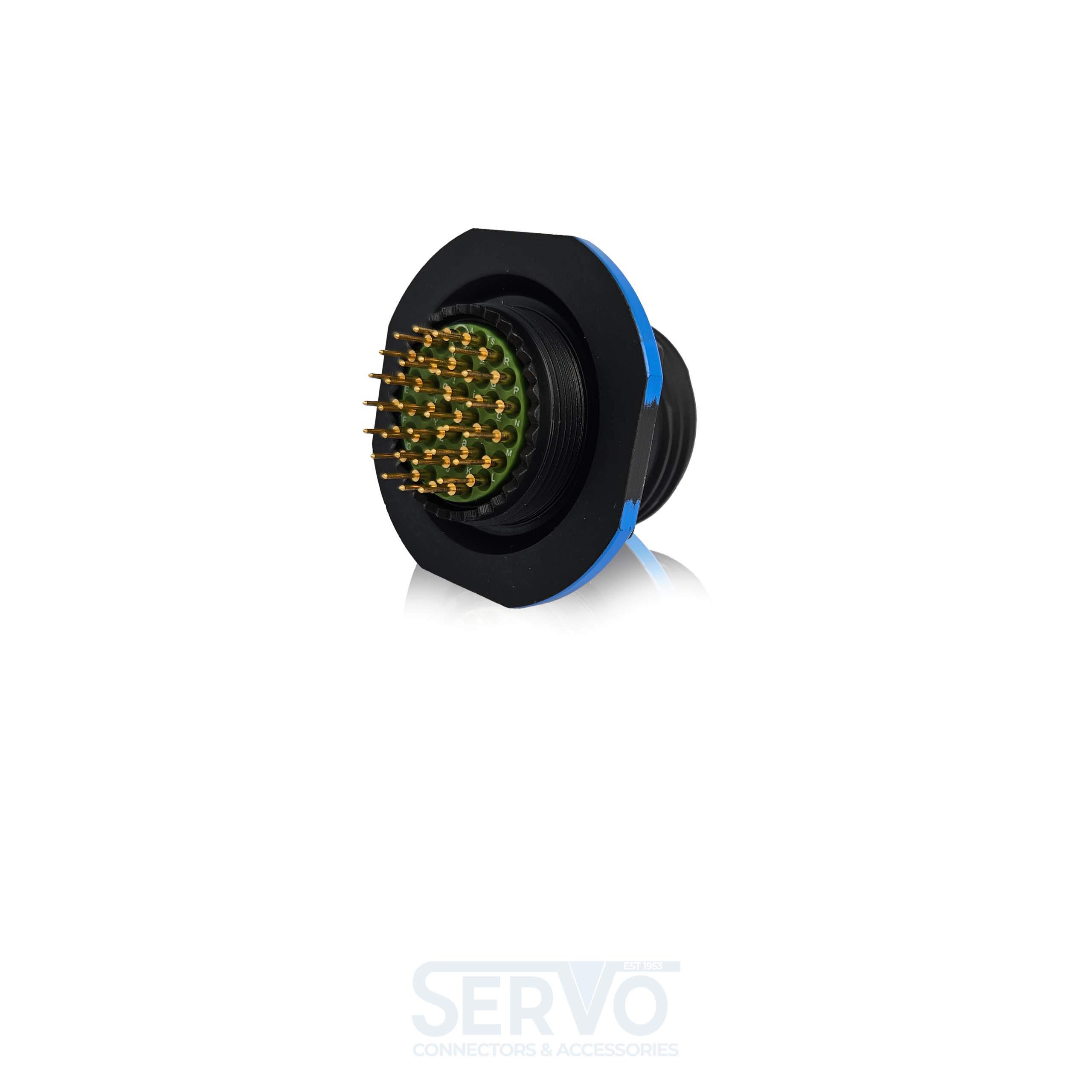

Eaton Souriau, 8D7C19Z32PN Jam Nut Receptacle, Shell Size 19 with Black Zinc Nickel Plating, 32 Size 20 Short PCB Tail Pin Contacts.

8D7C19Z32PA

8D7C19Z32PA Jam Nut Receptacle, Shell Size 19 with Black Zinc Nickel Plating, 32#20 Short PCB Tail Pin Contacts, A Orientation.

Ordering Information

119 in stock (can be backordered)

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerEaton Souriau
Connector StyleJam Nut Receptacle
Contact GenderPin – Male
Contact Size32#20
Contacts SuppliedYes
Insert KeywayA
Insert Arrangement19-32
No of Contacts32
Shell MaterialAluminium with Black Zinc Nickel Plating
Shell PlatingBlack Zinc Nickel (Z)
Shell Size19 (F)
Termination MethodPCB

Environmental Specifications

Operating Temperature-65°C +200°C – -85°F +392°F
RoHS CompliantYes
SealingIP67

Quality & Compliance

QualifiedYes – Commercial Version
Specification8D Series
Series8D Series III
VAD72 Hours

APPLICATIONS

Aerospace Applications
AerospaceSolutions for Aerospace
Industrial Applications
IndustrialSolutions for Industrial Applications
Military Applications
MilitarySolutions for Military
