Eaton Souriau

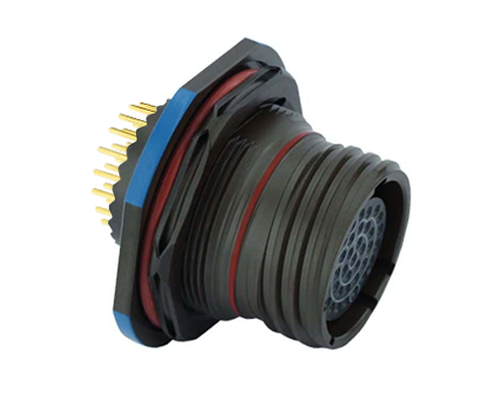

Eaton Souriau 8D7 Female - Socket connector with PCB in Black Zinc Nickel finish

8D7C23Z54SN

8D7C23Z54SN, Jam Nut Receptacle, Shell Size 23 with Black Zinc Nickel Plating, 4#12, 9#16, 40#22D Socket Contacts.

Ordering Information

Available to order

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerEaton Souriau
Connector StyleJam Nut Receptacle
Contact GenderSocket – Female
Contact Size4#12, 40#22D, 9#16
Contacts SuppliedYes
Insert KeywayN
Insert Arrangement23-54
No of Contacts53
Shell MaterialAluminium with Black Zinc Nickel Plating
Shell PlatingBlack Zinc Nickel (Z)
Shell Size23 (H)
Termination MethodPCB

Environmental Specifications

Operating Temperature-65°C +200°C – -85°F +392°F
RoHS CompliantYes
SealingIP67

Quality & Compliance

QualifiedYes – Commercial Version
Specification8D Series
Series8D Series III
VAD72 Hours
