8D7C25Z82PN308M

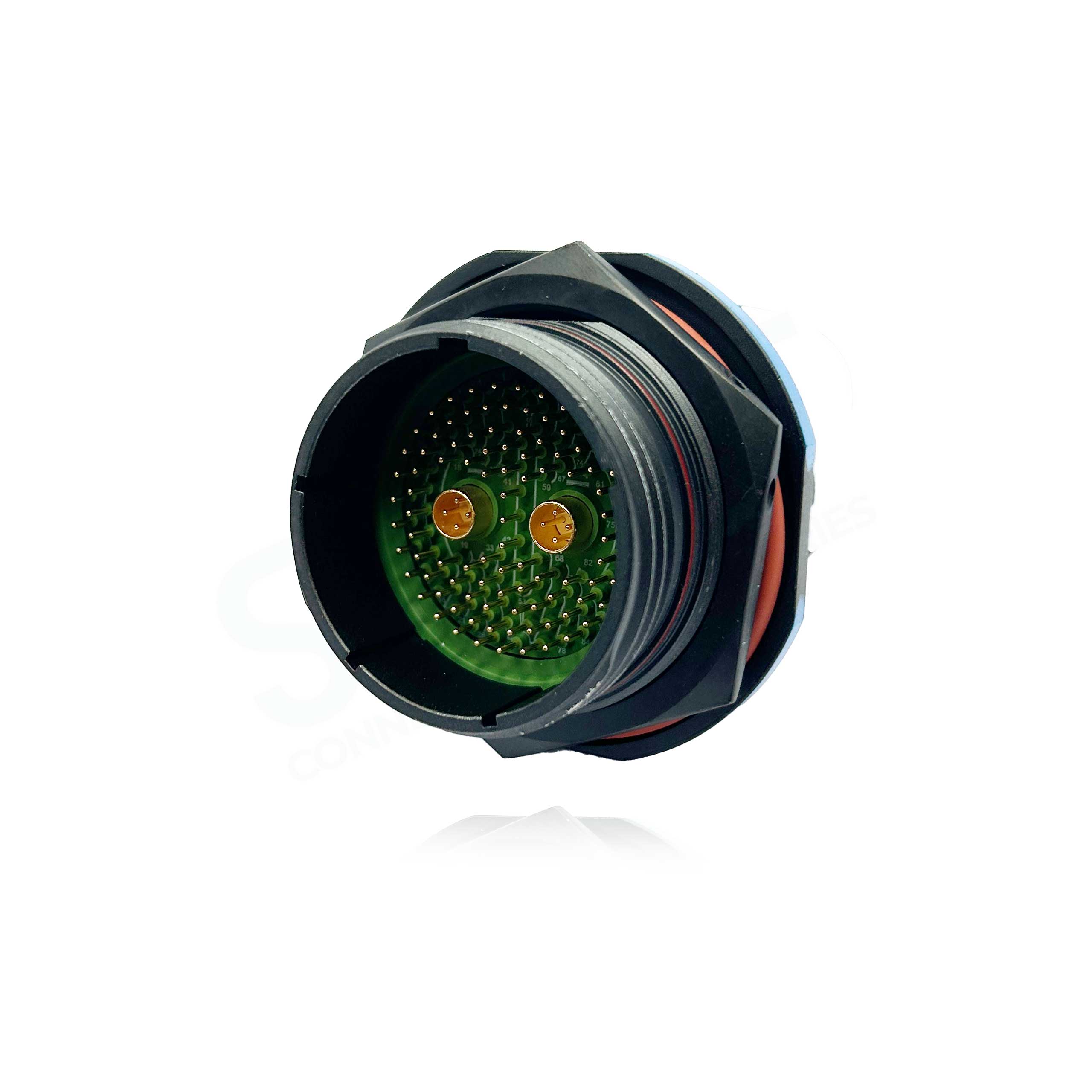

8D7C25Z82PN308M Jam Nut Receptacle, Shell Size 25 with Black Zinc Nickel Plating, 97#22D, 2#8 Quadrax Short PCB Tail Socket Contacts.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 2#8, 97#22D |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 25-82 |
| No of Contacts | 99 |
| Shell Material | Aluminium with Black Zinc Nickel Plating |
| Shell Plating | Black Zinc Nickel (Z) |
| Shell Size | 25 (J) |
| Termination Method | PCB |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
