Eaton Souriau

8LT011B35PN

29 in stock (can be backordered)

Summary

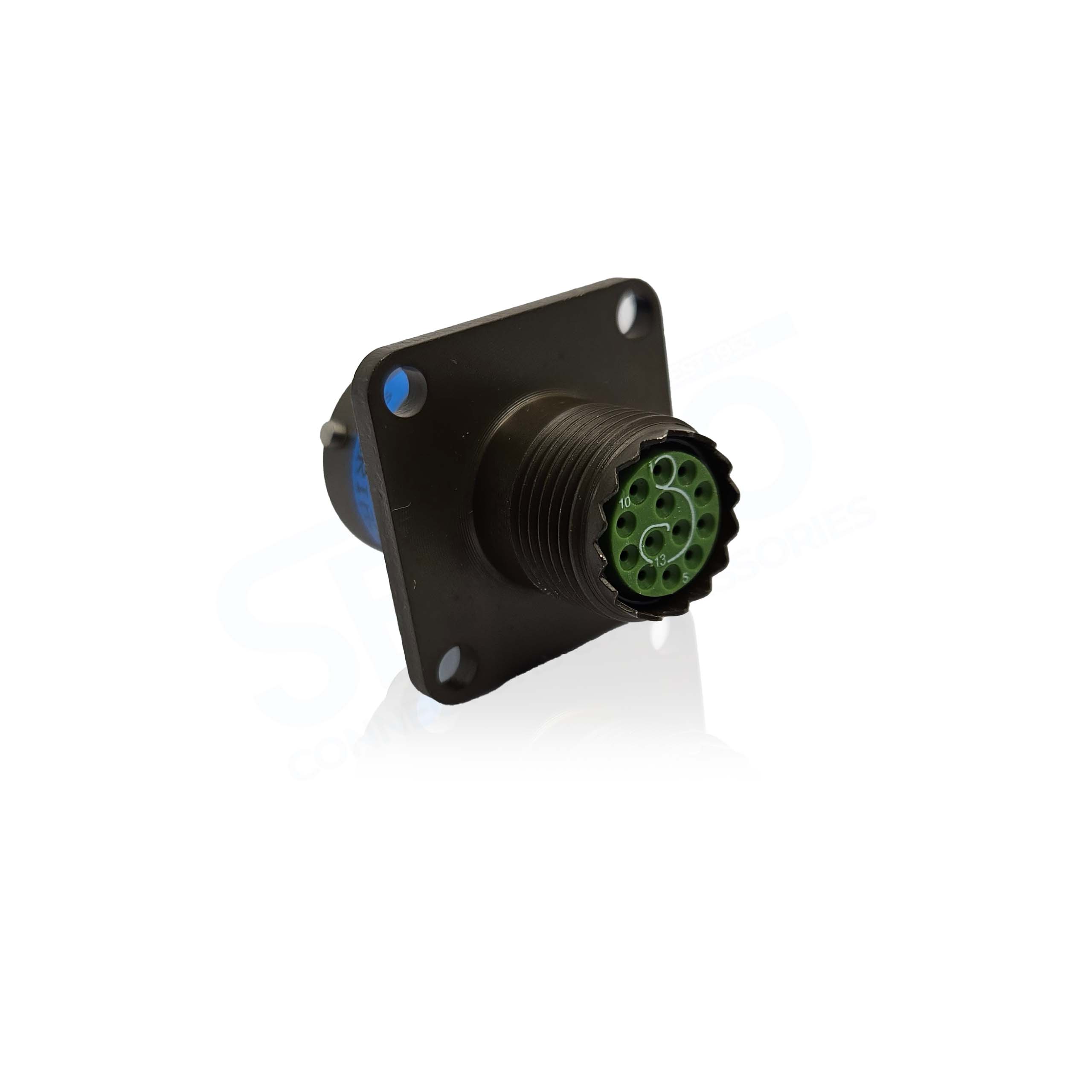

8LT011B35PN Square Flange Receptacle (Front Mounting), With thread for backfitting, supplied without backshell Shell Size 11 with Olive Green Cadmium Plating, 13#22D Pin Contacts, N Orientation.

Can Assemble In:48 Hours

Technical Information

Manufacturer: Eaton Souriau
Shell Style: Square Flange Receptacle
Shell Material: Aluminium Alloy
Shell Plating: Olive Green Cadmium
Shell Size: 11 (B)
Contact Size: 13#22D
Contact Gender: Pin
Contact Type: Crimp
Insert Arrangement: 11 – 35
Series: MIL-DTL-38999 Series I
Specification: Commercial
Cross Reference: MS27466T11B35P

HE30800T1135PN7M

Mates With:

8LT511B35SN

8LT Datasheet8LT Eaton Souriau Datasheet
Contact Layout

Full Description

Eaton Souriau 8LT011B35PN, is a MIL-DTL-38999 Series I Square Flange Receptacle circular connector with Olive Drab Cadmium Plating. Eaton Souriau 8LT Series is a Commercial equivalent to Mil Spec D38999 Series 1 designed to meet high performance needs of aerospace and military applications. The 8LT series, offers weight and space saving connectivity, with a quick mating – 3 point bayonet lock system and error proof positioning with 5 keyway polarisations. The 8LT MIL-DTL-38999 Series 1 provides a versatile connector solution with shell sizes 09 to 25 and extra flexibility with additional shell types compared to the Military MIL Spec specification, including extra contact types such as PCB Contacts. Both Military and Commercial MIL-DTL-38999 Series 1 connectors are available to purchase through Servo Connectors.

Servo and Electronic Sales are a VAD (Value Added Distributor) for Souriau Eaton D38999 / MIL-DTL-38999 Series I Connectors.
