8LT117B02PB In Line Receptacle (Front Mounting), With thread for backfitting, supplied without backshell Shell Size 17 with Olive Drab Cadmium Plating, 38#22D, 1#8 Triax Pin Contacts, B Orientation.
Technical Information
| Manufacturer: | Eaton Souriau |
| Shell Style: | In Line Receptacle |
| Shell Material: | Aluminium Alloy |
| Shell Plating: | Olive Drab Cadmium |
| Shell Size: | 17 (E) |
| Contact Size: | 38#22D, 1#8 Triax |
| Contact Gender: | Pin |
| Contact Type: | Crimp, Triax |
| Insert Arrangement: | 17 – 02 |
| Series: | MIL-DTL-38999 Series I |
| Specification: | Commercial |
| Mates With: | 8LT517B02SB |
| |

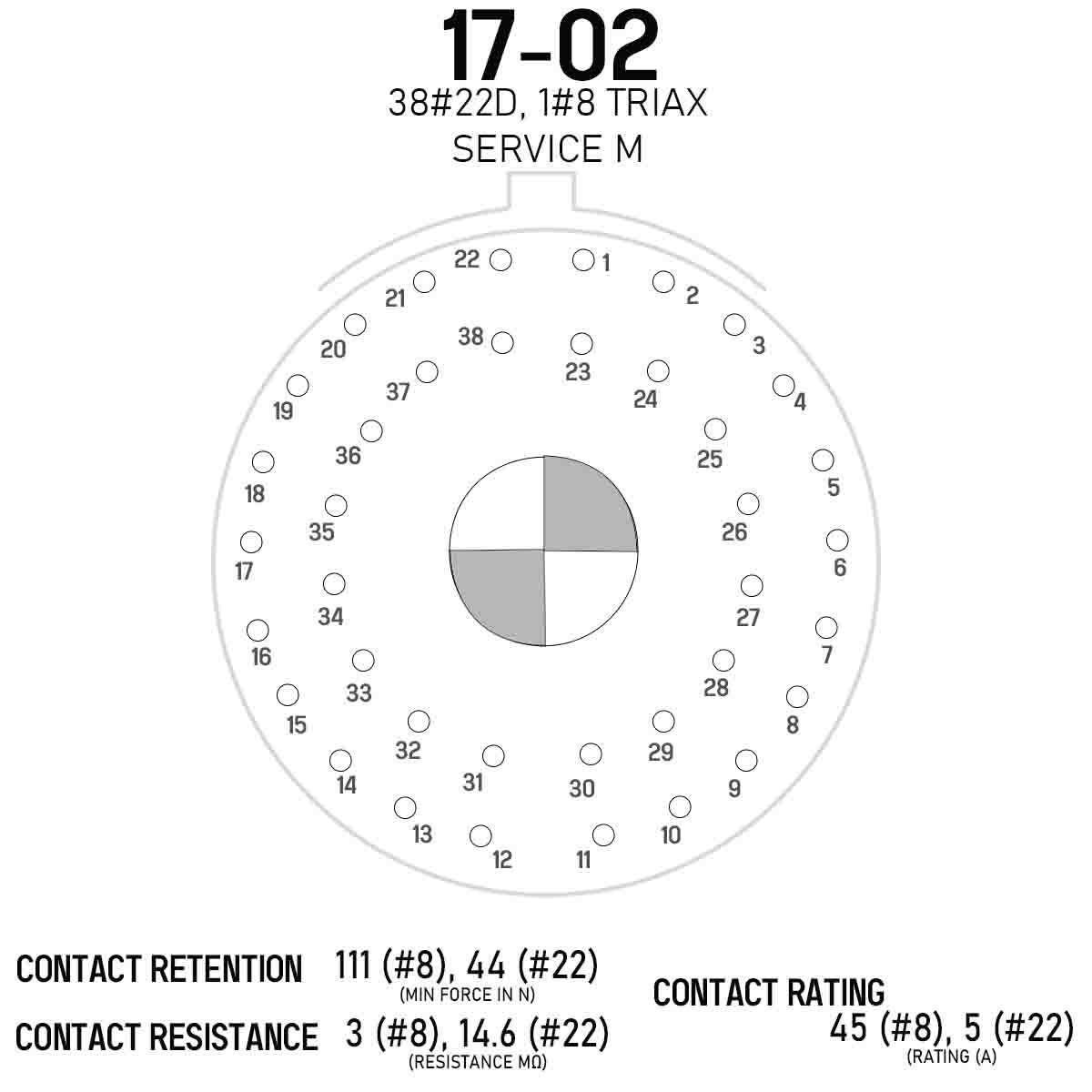

| Contact Layout
|
