8LT125Z08PC In Line Receptacle (Front Mounting), With thread for backfitting, supplied without backshell Shell Size 25 with Black Zinc Nickel Plating, 8#8 Triax Pin Contacts, C Orientation.
Technical Information
| Manufacturer: | Eaton Souriau |
| Shell Style: | In Line Receptacle |
| Shell Material: | Aluminium Alloy |
| Shell Plating: | Black Zinc Nickel |
| Shell Size: | 25 (J) |
| Contact Size: | 8#8 Triax |
| Contact Gender: | Pin |
| Contact Type: | Triax |
| Insert Arrangement: | 25 – 08 |
| Series: | MIL-DTL-38999 Series I |
| Specification: | Commercial |
|
| Mates With: | 8LT525Z08SC |
| |

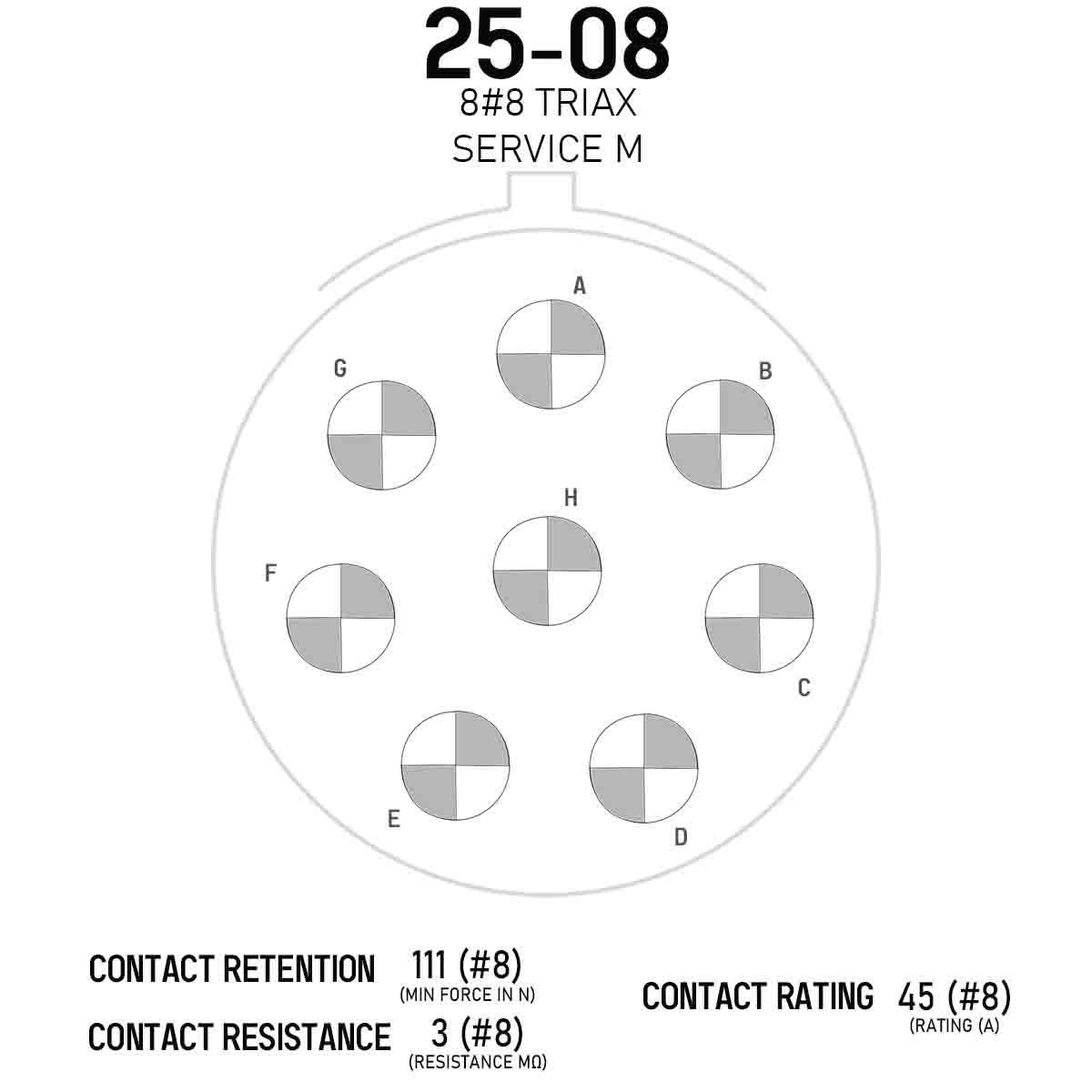

| Contact Layout
|
