8LT2725Z07PN

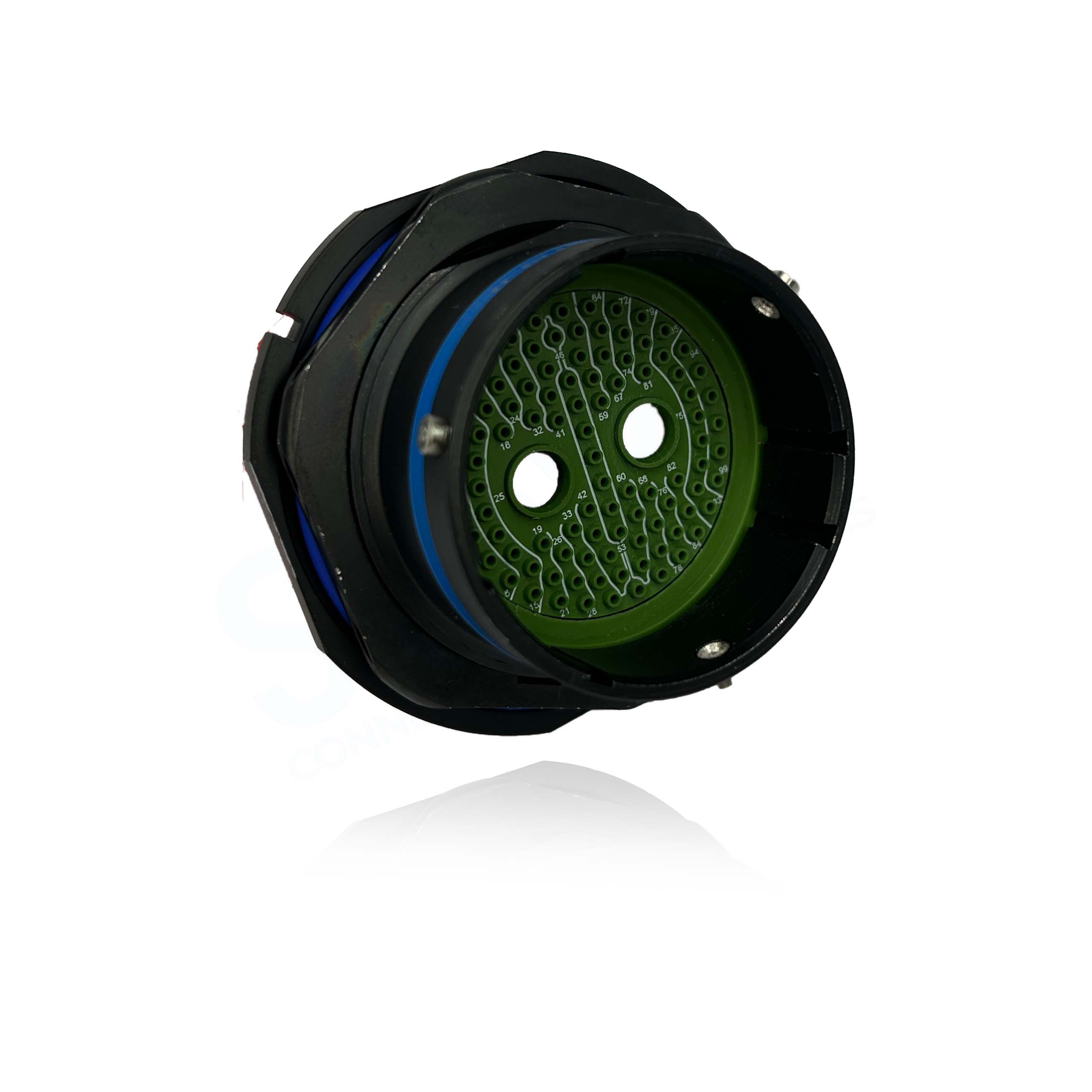

8LT2725Z07PN, Short Square Flange Receptacle, Thread for Backfitting, Shell Size 25 with Aluminium with Black Zinc Nickel Plating, 2#8 Triax, 97#22D Pin Contacts.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Receptacle for rack, for male contacts with possibility to mount rear accessory |
| Contact Gender | Pin - Male |
| Contact Size | 2#8 TRIAX, 97#22D |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 25-07 |
| No of Contacts | 99 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Black Zinc Nickel (Z) |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 2.5 mΩ |
| Shielding | 90 db at 100 MHz |
Environmental Specifications
| Operating Temperature | -65°C +175°C - -85°F +347°F |
|---|---|
| RoHS Compliant | Yes |
| Salt Spray | 500 Hours |
Quality & Compliance
| Qualified | Yes - Commercial Version |
|---|---|
| Specification | 8LT Series |
| Series | 8LT Series |
