8LT311B80AB
8LT311B80AB Square Flange Receptacle (Rear Mounting), supplied without backshell Shell Size 11 with Olive Green Cadmium Plating, 1#8 Triax Less Pin Contacts, B Orientation.
| Can Assemble In: | 48 Hours |
Technical Information
| Manufacturer: | Eaton Souriau |
| Shell Style: | Short Square Flange Receptacle, not accepting backshells |
| Shell Material: | Aluminium Alloy |
| Shell Plating: | Olive Green Cadmium |
| Shell Size: | 11 (B) |
| Contact Size: | 1#8 Triax |
| Contact Gender: | Less Pin |
| Contact Type: | Triax |
| Insert Arrangement: | 11 – 80 |
| Orientation: | B |
| Coupling Method: | Bayonet |
| RoHS Compliant: | Yes |
| Salt Spray: | 500 hrs |
| Mating Cycles: | 500 |
| IP Rating: | IP67 |
| Series: | MIL-DTL-38999 Series I |
| Specification: | Commercial |
| Cross Reference: | MS27505E11B80AB |
| Mates With: | |

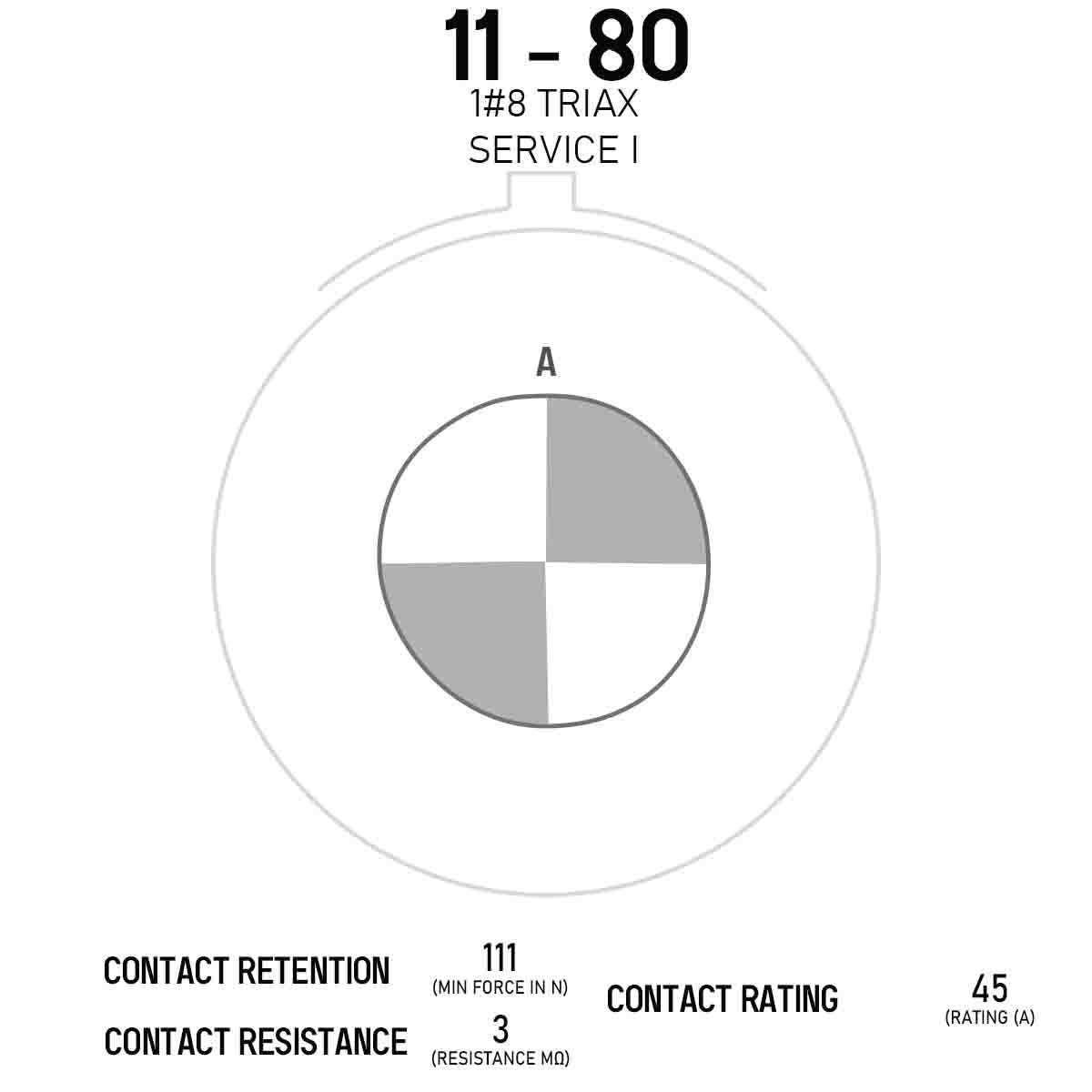

8LT Datasheet | Contact Layout
|
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|
