8LT319B11SN
8LT319B11SN Square Flange Receptacle (Rear Mounting), supplied without backshell Shell Size 19 with Olive Green Cadmium Plating, 11#16 Socket Contacts, N Orientation
| Can Assemble In: | 48 Hours |
Technical Information
| Manufacturer: | Eaton Souriau |
| Shell Style: | Short Square Flange Receptacle, not accepting backshells |
| Shell Material: | Aluminium Alloy |
| Shell Plating: | Olive Green Cadmium |
| Shell Size: | 19 (F) |
| Contact Size: | 11#16 |
| Orientation: | N |
| Coupling Method: | Bayonet |
| RoHS Compliant: | Yes |
| Salt Spray: | 500 hrs |
| Mating Cycles: | 500 |
| IP Rating: | IP67 |
| Contact Gender: | Socket |
| Contact Type: | Crimp |
| Insert Arrangement: | 19 – 11 |
| Series: | MIL-DTL-38999 Series I |
| Specification: | Commercial |
| Cross Reference: | MS27505E19B11S |
| Mates With: | |

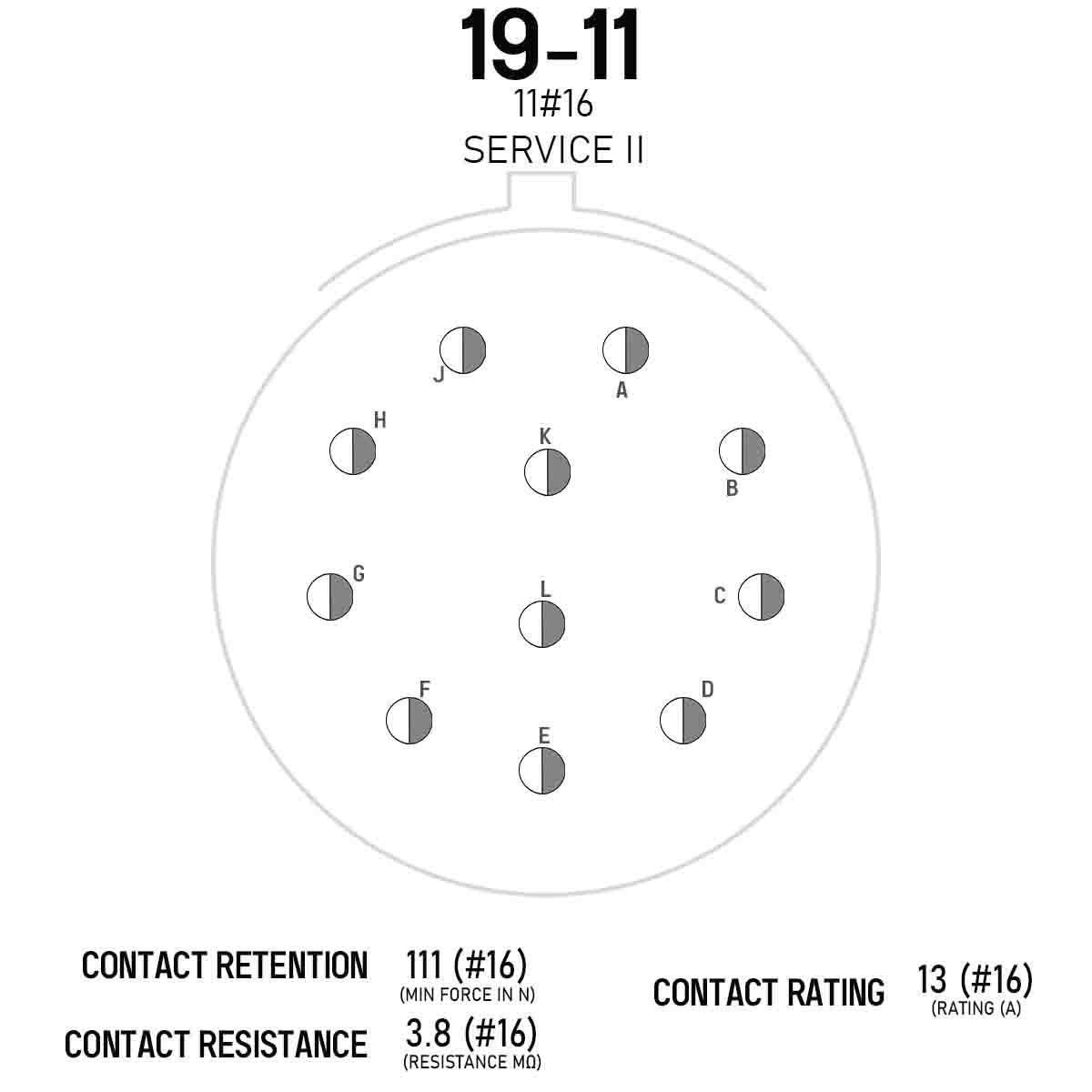

8LT Datasheet | Contact Layout
|
Technical Specifications
| Contact Gender | – |
|---|---|
| Insert Arrangement | – |
| Shell Material | Olive Green Cadmium |
