8LT525B37PA

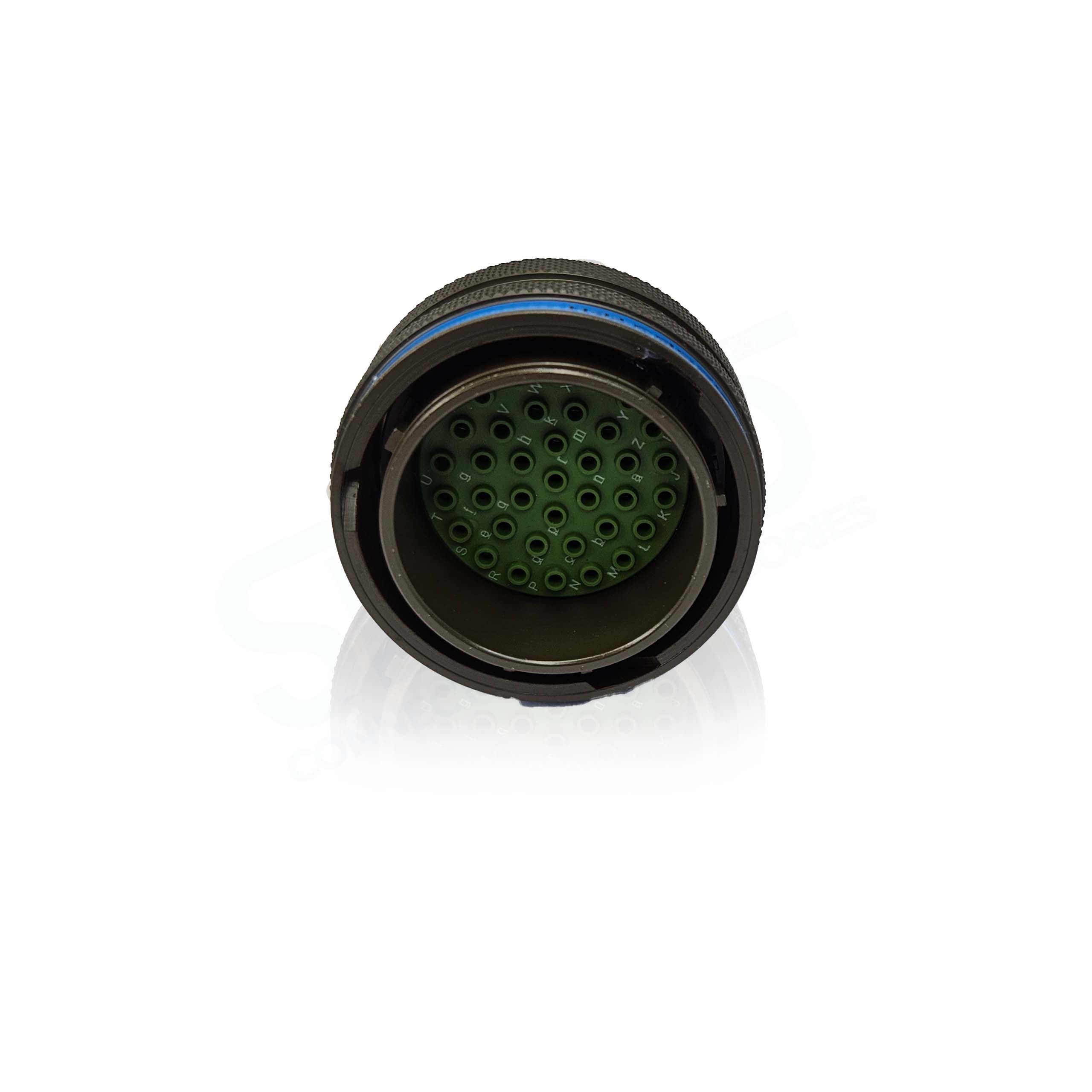

8LT525B37PA, Plug with RFI Shielding, Thread for Backfitting, Shell Size 25 with Olive Green Cadmium Plating, 37#16 Pin Contacts, A Orientation.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Plug with RFI Shielding |
| Contact Gender | Pin - Male |
| Contact Size | 37#16 |
| Contacts Supplied | Yes |
| Insert Keyway | A |
| Insert Arrangement | 25-37 |
| No of Contacts | 37 |
| Shell Material | Olive Green Cadmium |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 2.5 mΩ |
| Shielding | 90 db at 100 MHz |
Environmental Specifications
| Salt Spray | 500 Hours |
|---|
Quality & Compliance
| Qualified | Yes - Commercial Version |
|---|---|
| Specification | 8LT Series |
| Series | 8LT Series |
| VAD | 48 Hours |
