DMS3102A20-7PW
D/MS3102A20-7PW Box Mount Receptacle, Black Trivalent Chromate, Shell Size 20 with 8#16 Pin Contacts, W Orientation.
| RoHS: Yes |
43 in stock (can be backordered)
Technical Specifications
| Manufacturer | Fujikura (FJK) |
|---|---|
| Connector Style | Box Mount Receptacle |
| Contact Gender | Pin - Male |
| Contact Size | 8#16 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | W |

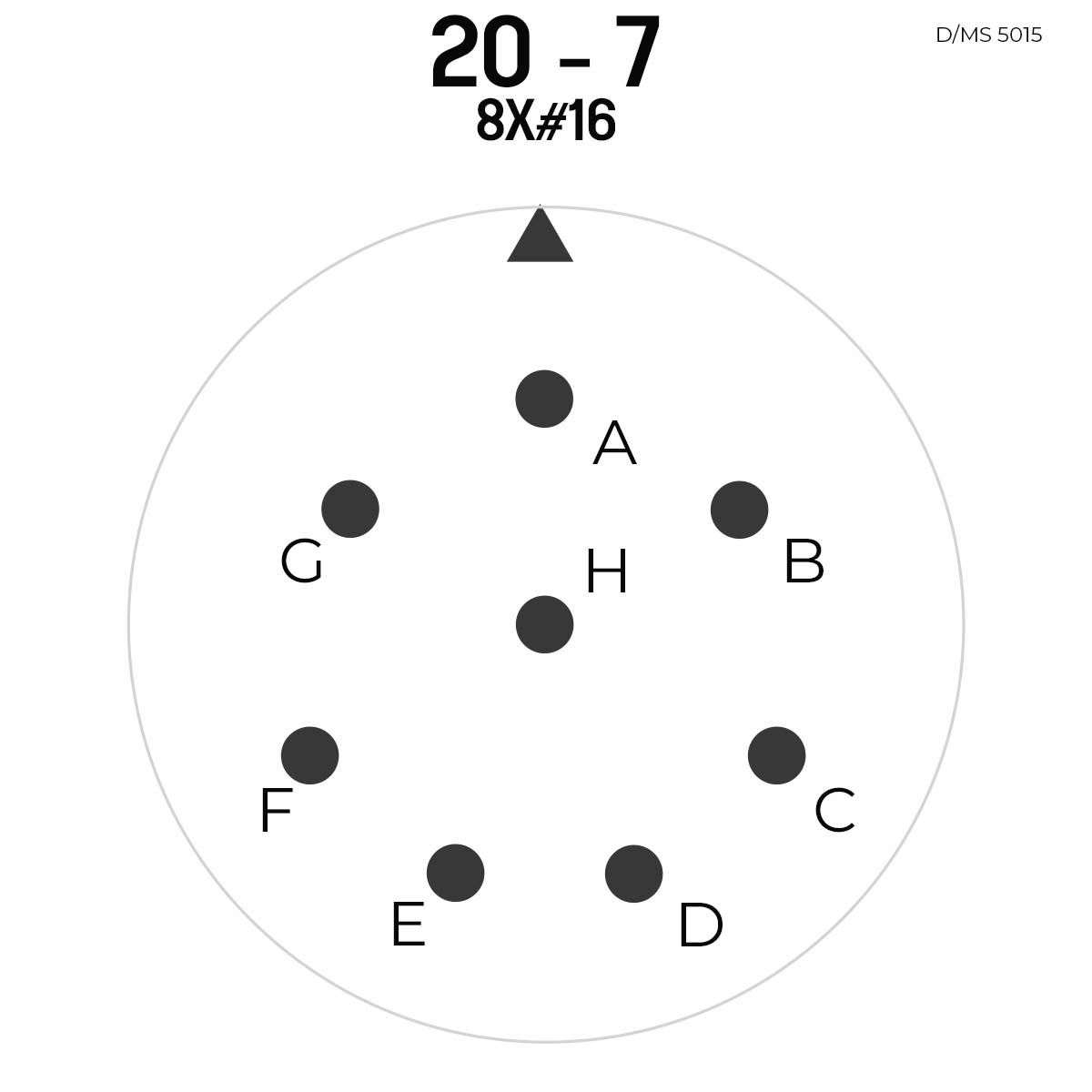

| Insert Arrangement | 20-7 |
| No of Contacts | 8 |
| Shell Material | Aluminium Alloy / Zinc |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | 20 |
| Termination Method | Solder |
Environmental Specifications
| Operating Temperature | - 55°C - + 125°C - -67°F - +257°F |
|---|---|
| RoHS Compliant | Yes |
| Insulation Resistance | 5000MΩ min. at 500V DC |
Quality & Compliance
| Qualified | MIL-DTL-5015 |
|---|---|
| Series | D/MS A/B |
| VAD | 24 Hours |
