DMS3102A22-22PY
D/MS3102A22-22PY Wall Mounting Receptacle, Trivalent Chromate, Shell Size 22 with 4#8 Pin Contacts, Y Orientation.
Click on part number below to check availabilty of accessory:
Dust Cap D/MS25043-28DK
34 in stock (can be backordered)
Technical Specifications
| Manufacturer | Fujikura (FJK) |
|---|
| Connector Style | Box Mounting Receptacle |
|---|
| Contact Gender | Pin - Male |
|---|
| Contact Size | 4#8 |
|---|
| Contacts Supplied | Yes |
|---|
| Coupling Style | Threaded |
|---|
| Insert Keyway | Y |
|---|
| Insert Arrangement | 22-22 |
|---|
| No of Contacts | 4 |
|---|
| Shell Material | Aluminium Alloy / Zinc |
|---|
| Shell Plating | Trivalent Chromium Treatment (Black) |
|---|
| Shell Size | 22 |
|---|
| Termination Method | Solder |
|---|
Environmental Specifications
| Operating Temperature | - 55°C - + 125°C - -67°F - +257°F |
|---|
| RoHS Compliant | Yes |
|---|
Quality & Compliance
| Qualified | MIL-DTL-5015 |
|---|
| Specification | MIL-DTL-5015 |
|---|
| Series | D/MS A/B |
|---|
Datasheet

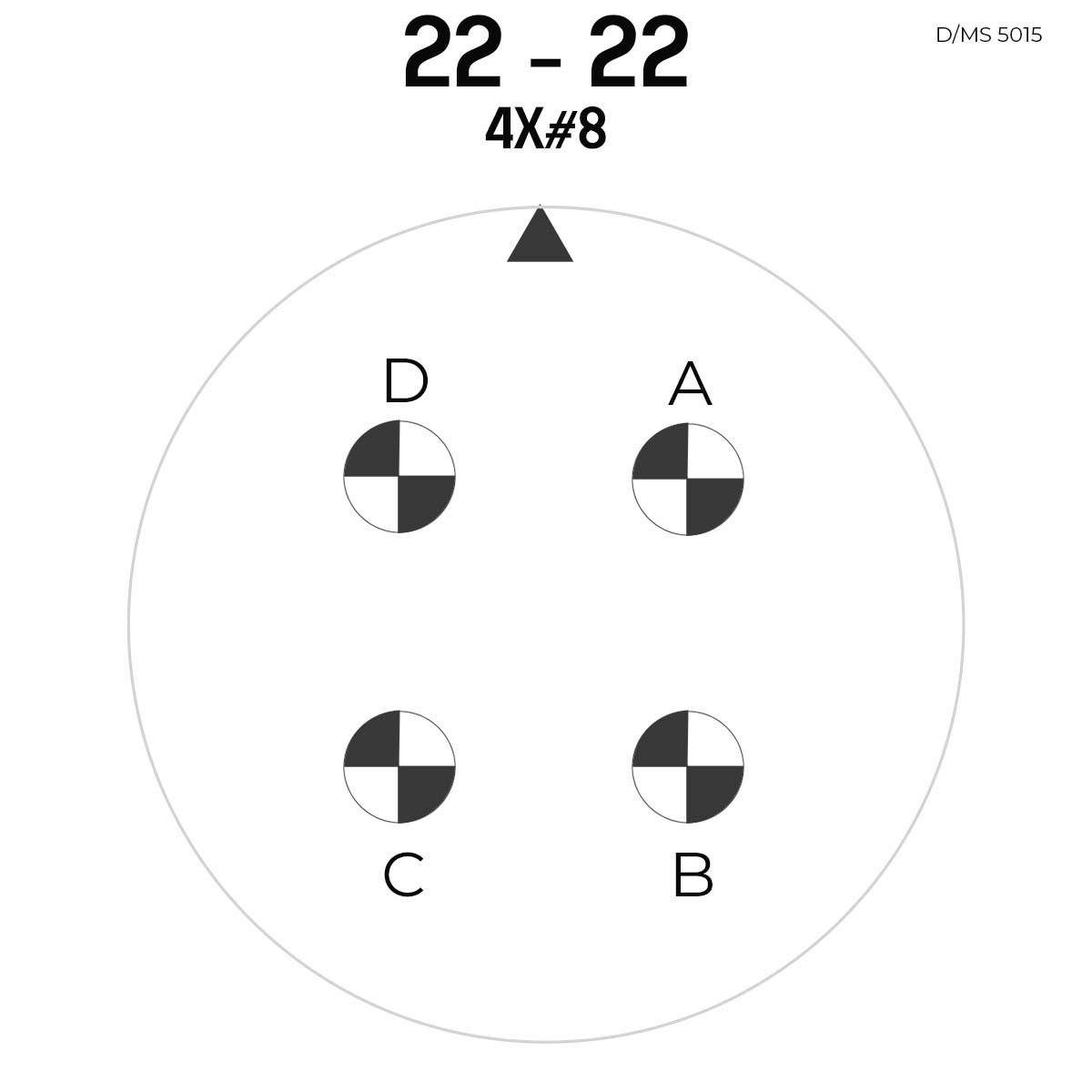

Insert Arrangement
