DMS3106A14S-9PZ
D/MS3106A14S-9PZ Straight Plug, Black Trivalent Chromate, Shell Size 14S with 2#16 Pin Contacts, Z Orientation.
| RoHS: Yes |
Available to order
Technical Specifications
| Manufacturer | Fujikura (FJK) |
|---|---|
| Connector Style | Straight Plug |
| Contact Gender | Pin - Male |
| Contact Size | 2#16 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | Z |

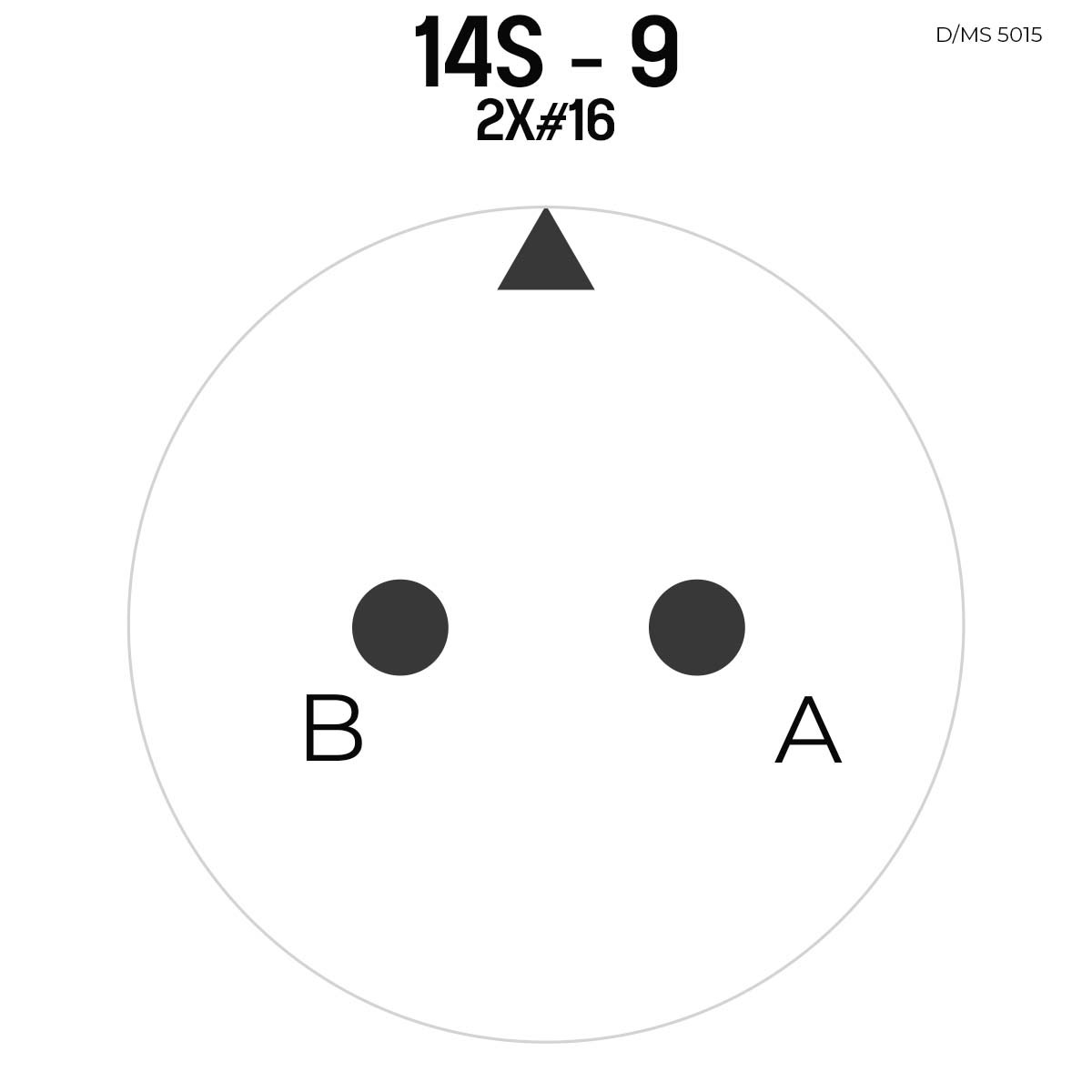

| Insert Arrangement | 14S-9 |
| No of Contacts | 2 |
| Shell Material | Aluminium Alloy / Zinc |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | 14S |
| Termination Method | Solder |
Environmental Specifications
| Operating Temperature | - 55°C - + 125°C - -67°F - +257°F |
|---|---|
| RoHS Compliant | Yes |
| Insulation Resistance | 5000MΩ min. at 500V DC |
Quality & Compliance
| Qualified | MIL-DTL-5015 |
|---|---|
| Specification | MIL-DTL-5015 |
| Series | D/MS A/B |
| VAD | 24 Hours |
