| Manufacturer | |
|---|---|
| Angle | Right Angle |
| Colour | Black |
| Connector Style | Right Angle Plug |
| Contact Gender | Pin – Male |
| Contact Plating | Silver (Standard) |
| Contact Size | 7#8 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | Normal |
| Insert Arrangement | 28-10 |
| No of Contacts | 7 |
| Insulation Resistance | 5000M? min. at 500V DC |
| Qualified | -55?C to +125?C – -67?F to +257?F |
| RoHS Compliant | Yes |
| Series | D/MS A/B |
| Shell Material | |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | |
| Specification | MIL-DTL-5015 |
| Termination Method | Solder |
D/MS3108B24-10P
34 in stock (can be backordered)
Summary
D/MS3108B24-10P Right Angle Plug, Black Trivalent Chromate, Shell Size 24 with 7#8 Pin Contacts
| Manufacturer: | Fujikura |
|---|---|
| RoHS: |  |
| Datasheet: | D/MS3108B24-10P Datasheet |
| Additional: |  |
Datasheet

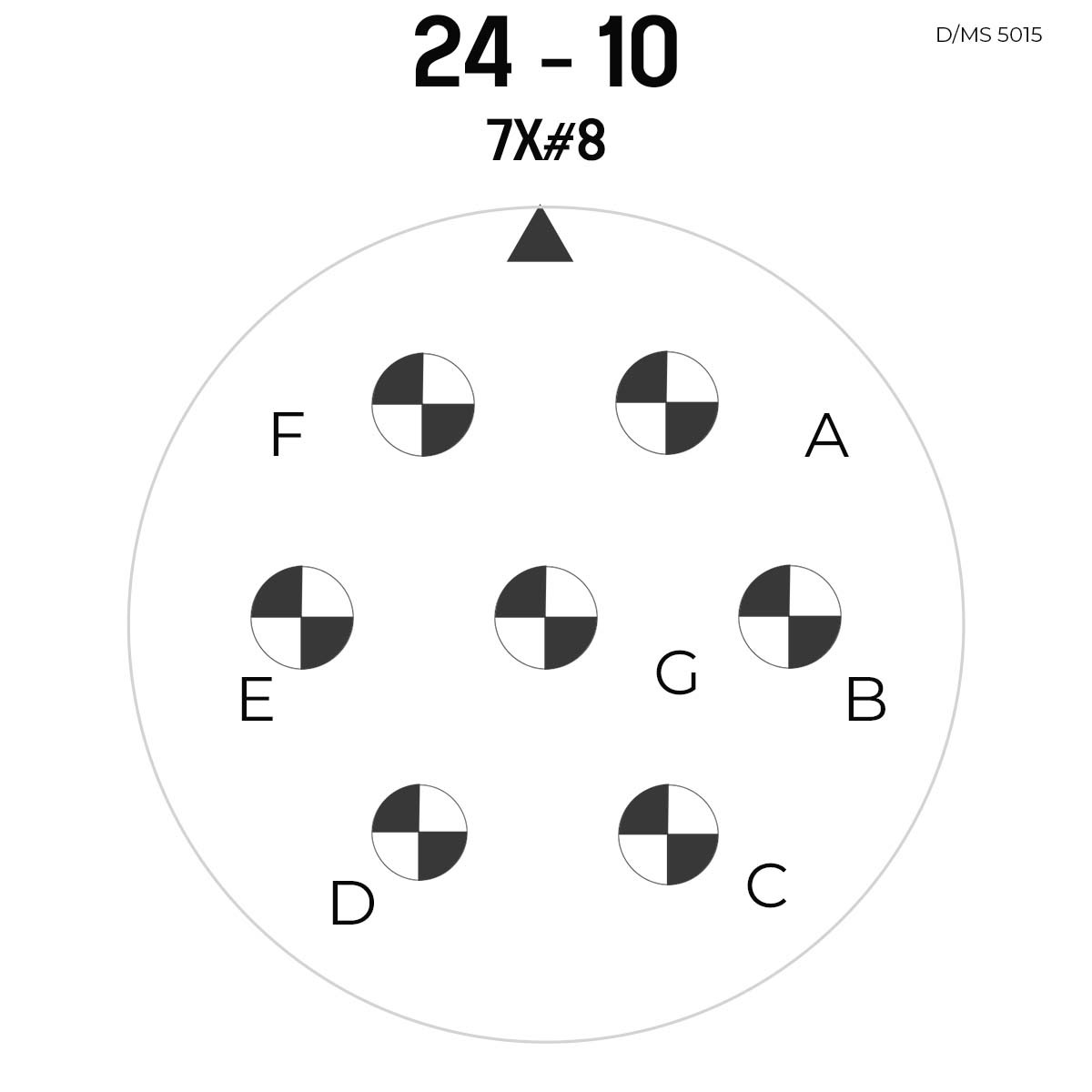

Insert Arrangement
Mating Products
 |
D/MS3100A24-10S
Wall Mount Receptacle 24 SOCKET |
 |
D/MS3101A24-10S
Cable Receptacle 24 SOCKET |
 |
D/MS3102A24-10S
Box Mount Receptacle 24 SOCKET |
Accessories
 |
Dust Cap |
