Eaton Souriau
Eaton Souriau, D38999/20FC35BA, Square Flange Receptacle, Shell Size 13 with Aluminium Nickel Plating, 22#22D Less Socket Contacts, A Orientation.

D38999/20FC35SN

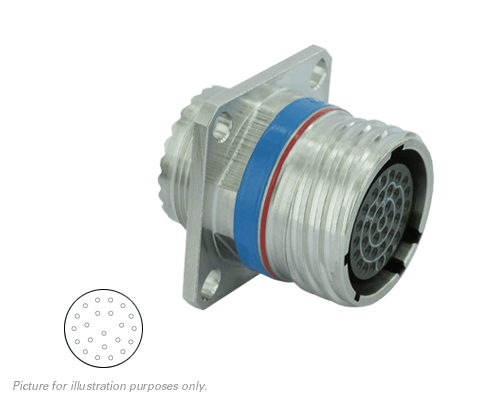

D38999/20FC35SN / 8D013F35SN, Square Flange Receptacle, Shell Size 13 with Aluminium Nickel Plating, 22#22D Socket Contacts.

Can Assemble In:48 Hours

[table “” not found /]

RoHS Compliant: Yes

Ordering Information

160 in stock (can be backordered)

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerEaton Souriau
Connector StyleSquare Flange Receptacle
Contact GenderSocket – Female
Contacts SuppliedYes
Insert KeywayN
Shell MaterialAluminium Alloy
Shell PlatingElectroless Nickel (F)
Shell Size13 (C)
Termination MethodCrimp

Environmental Specifications

Operating Temperature-65°C +200°C – -85°F +392°F
RoHS CompliantYes
SealingIP67

Quality & Compliance

QualifiedYes – Military Spec
SpecificationMIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC
SeriesMIL-DTL-38999 Series III
