D38999/20JD97PN

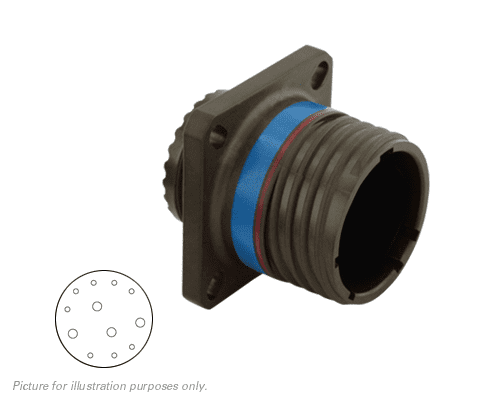

D38999/20JD97PN / 8D015J97PN, Square Flange Receptacle, Shell Size 15, Composite Olive Drab Cadmium Plating,4#16, 8#20 Pin Contacts.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 4#16, 8#20 |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 15-97 |
| No of Contacts | 12 |
| Shell Material | Composite with Olive Drab Cadmium Plating |
| Shell Size | 15 (D) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | No |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Military Spec |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
