D38999/20ME8BB

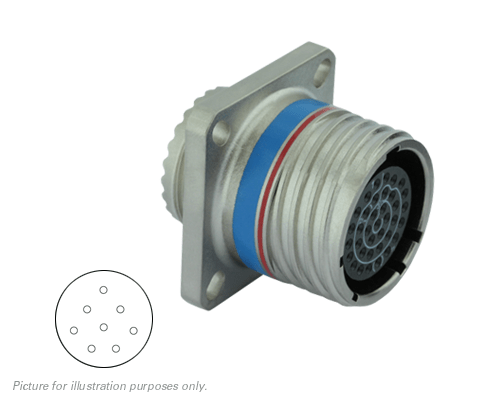

D38999/20ME8BB / 8D017M08BB, Square Flange Receptacle, Shell Size 17, Composite Nickel, 8#16 Less Socket Contacts, B Orientation.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Less Socket Contacts |
| Contact Size | 8#16 |
| Contacts Supplied | No |
| Insert Keyway | B |
| Insert Arrangement | 17-08 |
| No of Contacts | 8 |
| Shell Material | Composite Nickel |
| Shell Size | 17 (E) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Military Spec |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
| VAD | 48 Hours |
