Eaton Souriau
Eaton Souriau, D38999/20WC4AA, Square Flange Receptacle, Shell Size 13 with Aluminium Olive Drab Cadmium Plating, 4#16 Less Pin Contacts, A Orientation.

D38999/20WC4PN

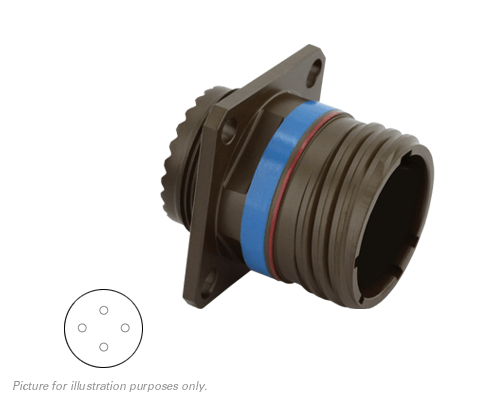

D38999/20WC4PN / 8D013W04PN, Square Flange Receptacle, Shell Size 13 with Aluminium Olive Drab Cadmium Plating, 4#16 Pin Contacts.

Can Assemble In:48 Hours

RoHS Compliant: No

Ordering Information

Available to order

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerEaton Souriau
Connector StyleSquare Flange Receptacle
Contact GenderPin – Male
Contacts SuppliedYes
Insert KeywayN
Shell MaterialAluminium Alloy
Shell PlatingOlive Drab Cadmium (W)
Shell Size13 (C)
Termination MethodCrimp

Environmental Specifications

Operating Temperature-65°C +175°C – -85°F +347°F
RoHS CompliantNo
SealingIP67

Quality & Compliance

QualifiedYes – Military Spec
SpecificationMIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC
SeriesMIL-DTL-38999 Series III
