Eaton Souriau

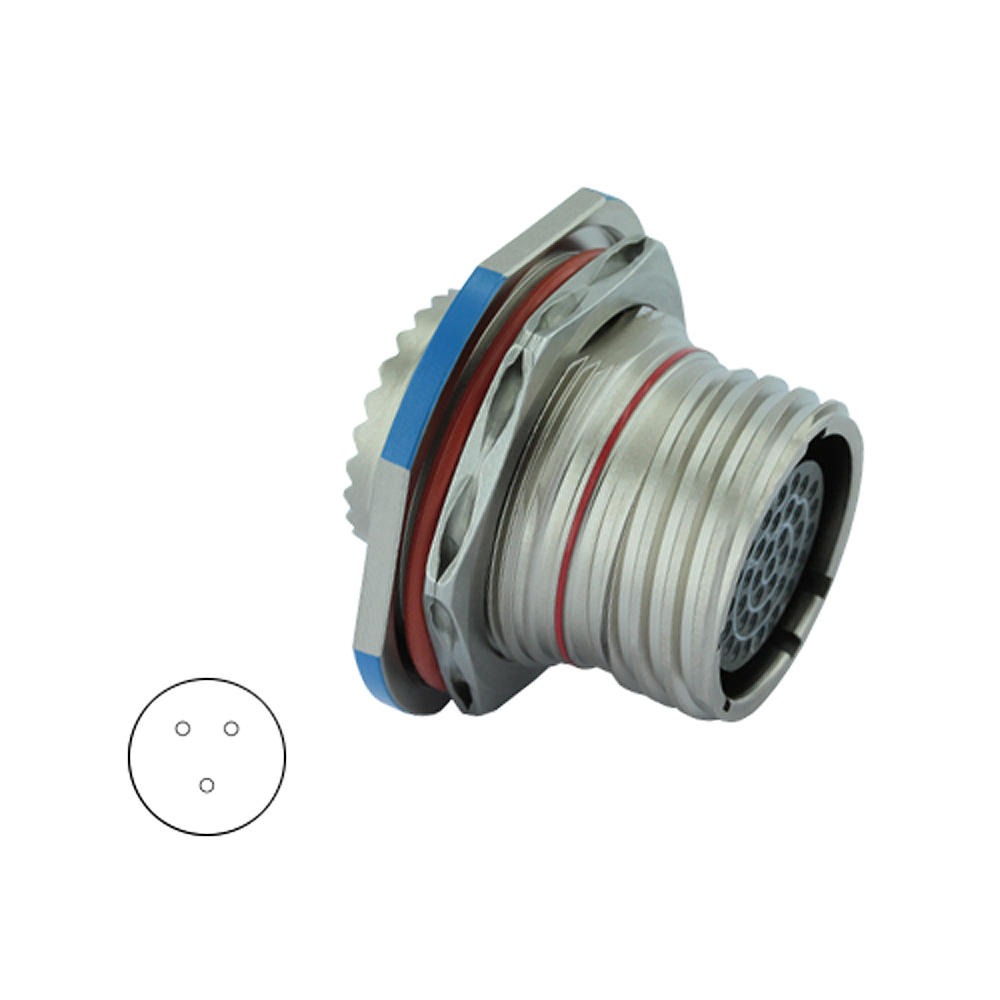

Eaton Souriau 8D709F98BA, Jam Nut Receptacle, Shell Size 09 with Aluminium Nickel Plating, 3#20 Less Socket Contacts, A Orientation.

D38999/24FA98SA

D38999/24FA98SA Jam Nut Receptacle, Shell Size 09 with Aluminium Alloy Nickel (F) Plating, 3#20 Socket Contacts, A Orientation.

RoHS: Yes
Delivery: 48 Hour Build

Ordering Information

3 in stock (can be backordered)

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerEaton Souriau
Connector StyleJam Nut Receptacle
Contact GenderSocket – Female
Contact Size3#20
Contacts SuppliedYes
Insert KeywayA
Insert Arrangement09-98
No of Contacts3
Shell MaterialAluminium Alloy
Shell PlatingElectroless Nickel (F)
Shell Size09 (A)
Termination MethodCrimp

Environmental Specifications

Operating Temperature-65°C +200°C – -85°F +392°F
RoHS CompliantYes
SealingIP67

Quality & Compliance

QualifiedYes – Military Spec
SpecificationMIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC
SeriesMIL-DTL-38999 Series III
