D38999/24FD19PC

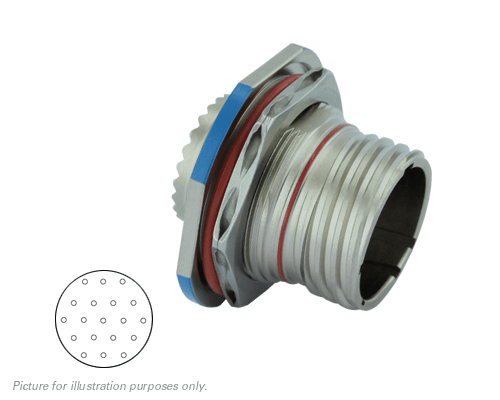

D38999/24FD19PC, Jam Nut Receptacle, Shell Size 15 with Aluminium Alloy Nickel (F) Plating, 19#20 Pin Contacts, C Orientation.

RoHS: Yes
Delivery: 48 Hour Build

Ordering Information

14 in stock (can be backordered)

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerEaton Souriau
Connector StyleJam Nut Receptacle
Contact GenderPin – Male
Contact Size19#20
Contacts SuppliedYes
Insert KeywayC
Insert Arrangement15-19
No of Contacts19
Shell MaterialAluminium Alloy
Shell PlatingElectroless Nickel (F)
Shell Size15 (D)
Termination MethodCrimp

Environmental Specifications

Operating Temperature-65°C +200°C – -85°F +392°F
RoHS CompliantYes
SealingIP67

Quality & Compliance

QualifiedYes – Military Spec
SpecificationMIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC
SeriesMIL-DTL-38999 Series III
