D38999/24FD35AN

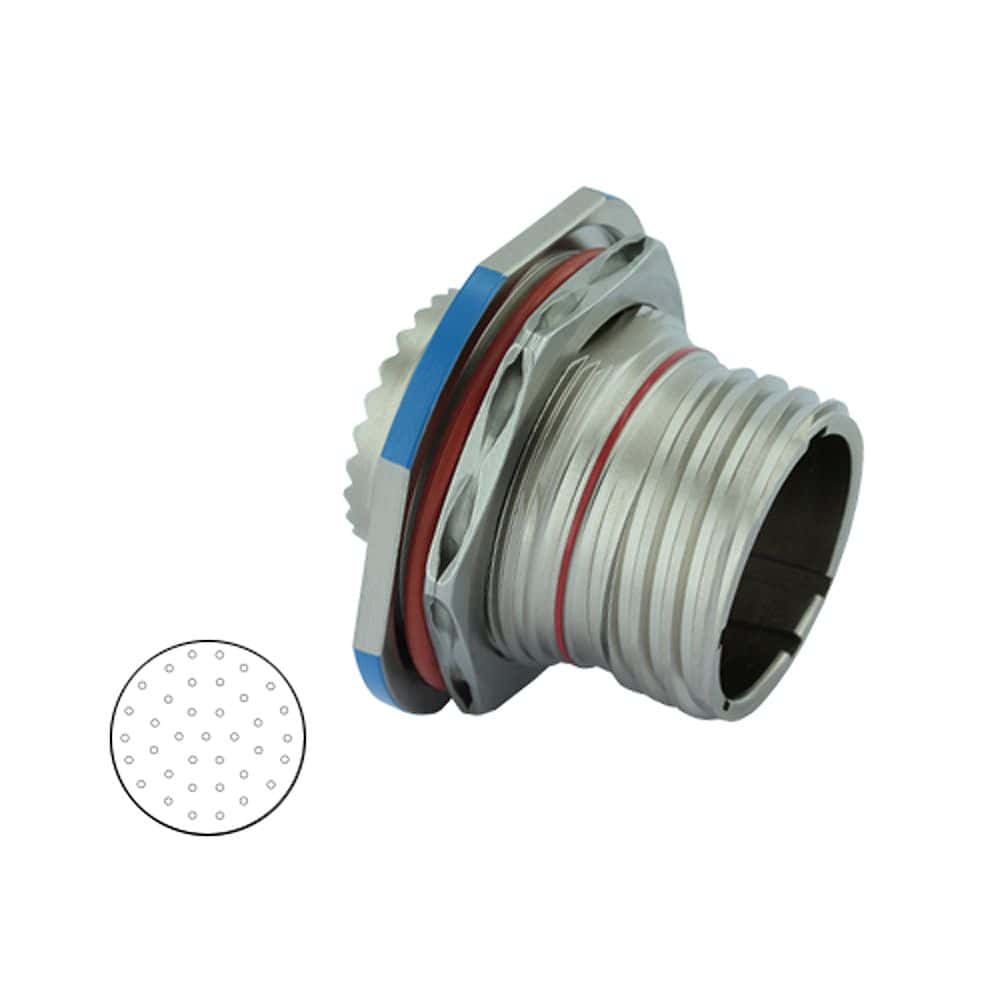

D38999/24FD35AN, Jam Nut Receptacle, Shell Size 15 with Aluminium Alloy Nickel (F) Plating, 37#22D Less Pin Contacts, N Orientation.
| RoHS: Yes Delivery: 48 Hour Build |
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Shell Material | Aluminium Alloy |
| Shell Plating | Electroless Nickel (F) |
| Shell Size | 15 (D) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Military Spec |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
