Eaton Souriau
Eaton Souriau, D38999/24FE35AA, Jam Nut Receptacle, Shell Size 17 with Aluminium Alloy Nickel (F) Plating, 55#22D Less Pin Contacts, A Orientation.

D38999/24FE35PN

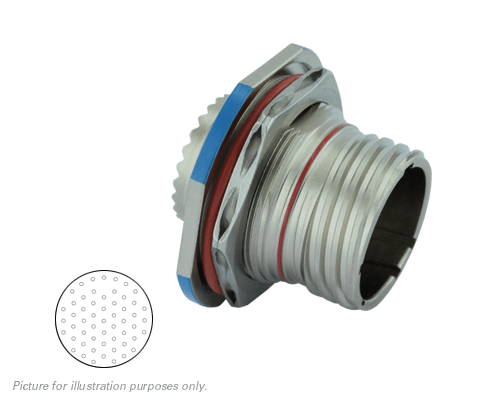

D38999/24FE35PN, Jam Nut Receptacle, Shell Size 17 with Nickel Plating (F), 55#22D Pin Contacts.

RoHS: Yes
Delivery: 48 Hour Build

Ordering Information

19 in stock (can be backordered)

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerEaton Souriau
Connector StyleJam Nut Receptacle
Contact GenderPin – Male
Contact Size55#22D
Contacts SuppliedYes
Insert KeywayN
Insert Arrangement17-35
No of Contacts55
Shell MaterialAluminium Alloy
Shell PlatingElectroless Nickel (F)
Shell Size17 (E)
Termination MethodCrimp

Environmental Specifications

Operating Temperature-65°C +200°C – -85°F +392°F
RoHS CompliantYes
SealingIP67

Quality & Compliance

QualifiedYes – Military Spec
SpecificationMIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC
SeriesMIL-DTL-38999 Series III
VAD48 Hours
