D38999/24FE6SN

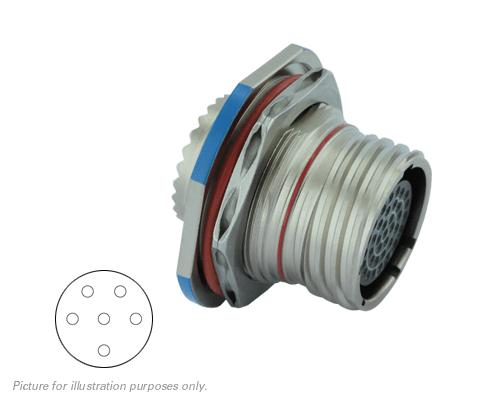

D38999/24FE6SN, Jam Nut Receptacle, Shell Size 17 with Nickel Plating (F), 6#12 Socket Contacts
| RoHS: Yes Delivery: 48 Hour Build |
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 6#12 |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 17-06 |
| No of Contacts | 6 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Nickel (F) |
| Shell Size | 17 (E) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Military Spec |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
