D38999/24KD19SN

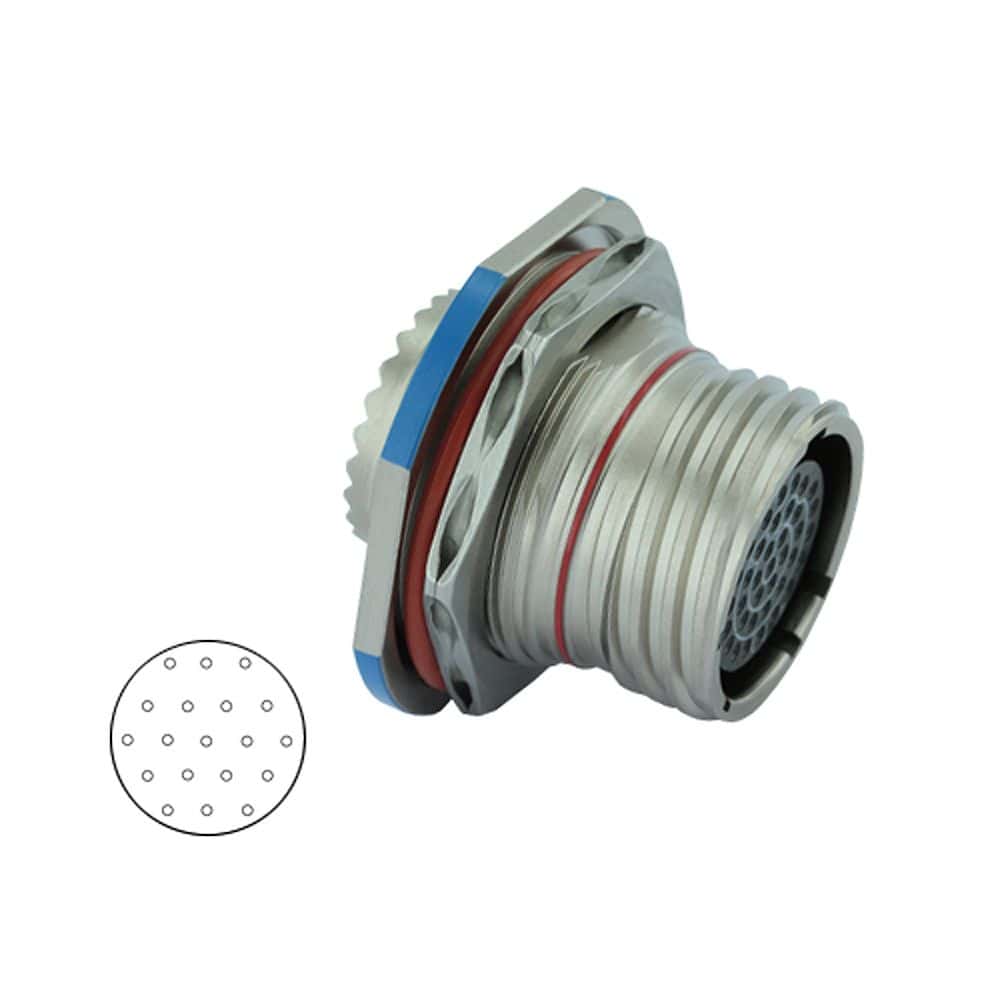

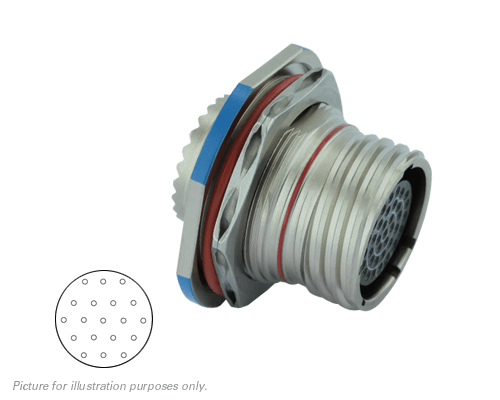

D38999/24KD19SN, Jam Nut Receptacle, Shell Size 15 with Passivated Stainless Steel (K) Plating, 19#20 Socket Contacts, Normal Orientation.
| RoHS: Yes Delivery: 48 Hour Build |
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 19#20 |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 15-19 |
| No of Contacts | 19 |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated (K) |
| Shell Size | 15 (D) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Military Spec |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
