D38999/24KJ46PB

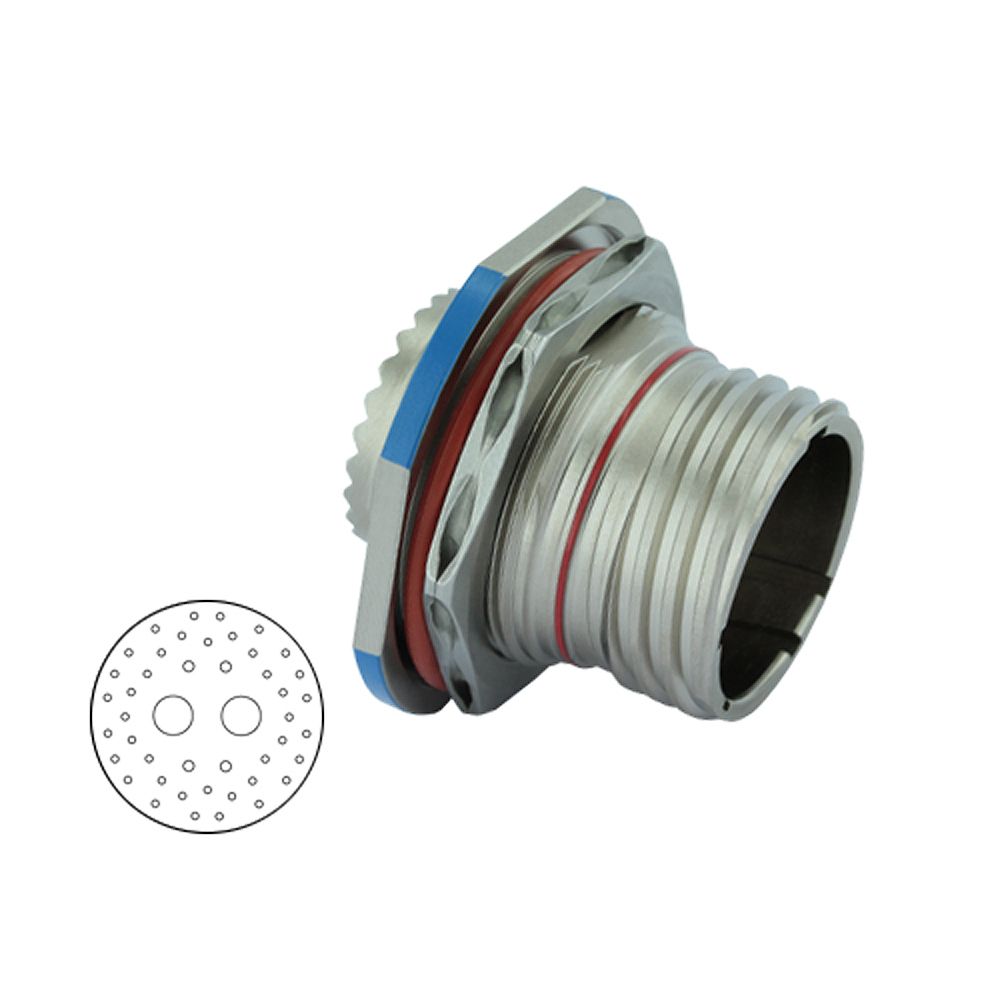

D38999/24KJ46PB, Jam Nut Receptacle, Shell SIze 25 with Passivated Stainless Steel (K) Plating, 40#20, 4#16, 2#8 Coax Pin Contacts, B Orientation.
| RoHS: Yes Delivery: 48 Hour Build |
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 2#8, 4#16, 40#20 |
| Contacts Supplied | Yes |
| Insert Keyway | B |
| Insert Arrangement | 25-46 |
| No of Contacts | 46 |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated (K) |
| Shell Size | 25 (J) |
| Termination Method | Coax, Crimp |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Military Spec |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
