D38999/24SC35PA

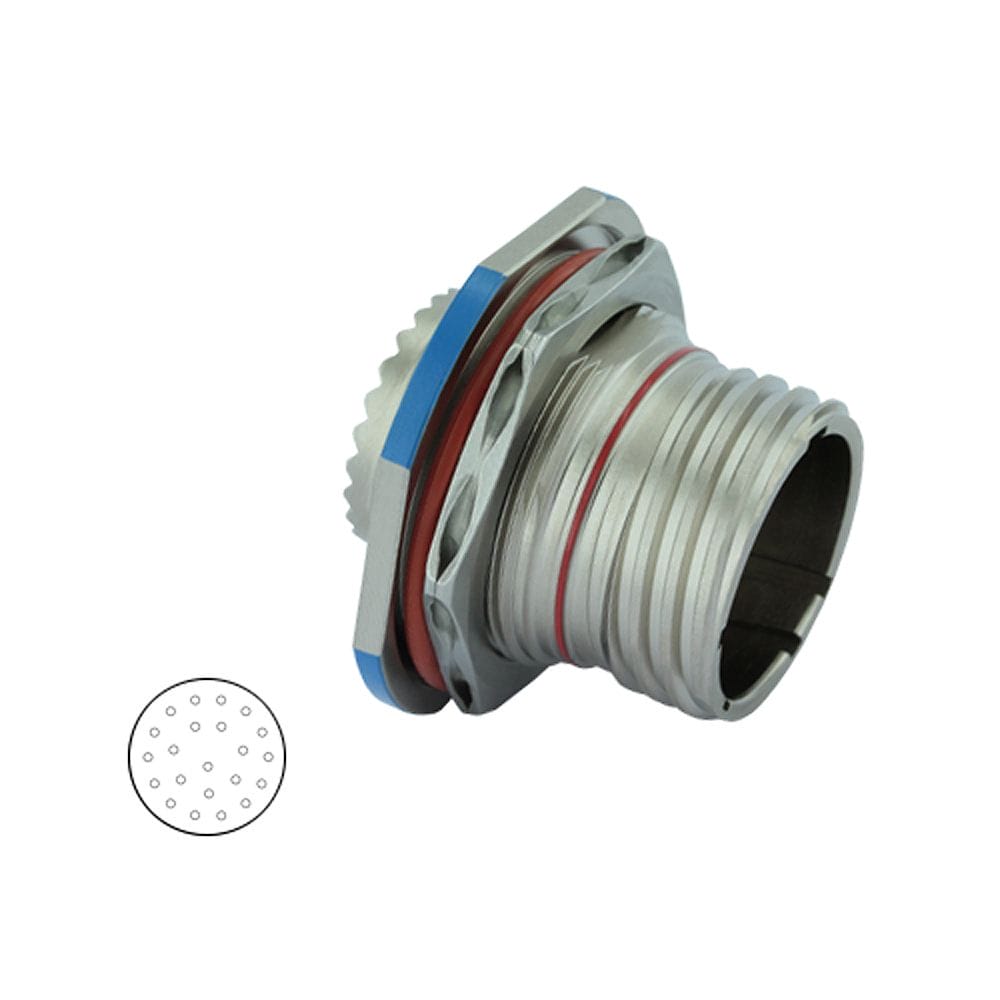

D38999/24SC35PA, Jam Nut Receptacle, Shell Size 13 with Stainless Steel Nickel (S) Plating, 22#22D Pin Contacts, A Orientation.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Pin - Male |
| Contact Size | 22#22D |
| Contacts Supplied | Yes |
| Insert Keyway | A |
| Insert Arrangement | 13-35 |
| No of Contacts | 22 |
| Shell Material | Stainless Steel Nickel |
| Shell Size | 13 (C) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +200°C - -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes - Military Spec |
|---|---|
| Specification | MIL-DTL-38999 Series III - EN3645 - BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
| VAD | 72 Hours |
