D38999/24SH35BC

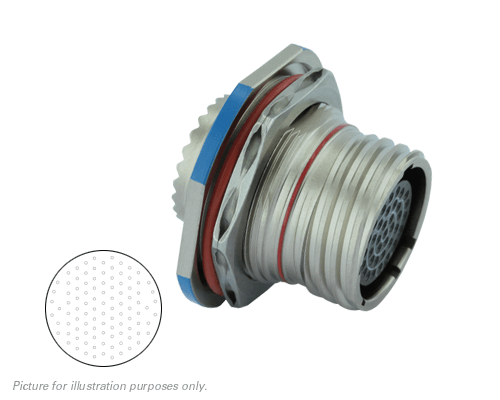

D38999/24SH35BC, Jam Nut Receptacle, Shell Size 23, Stainless Steel Nickel Plating with 100#22D Less Socket Contacts, C Orientation.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Less Socket Contacts |
| Contact Size | 100#22D |
| Contacts Supplied | No |
| Insert Keyway | C |
| Insert Arrangement | 23-35 |
| No of Contacts | 100 |
| Shell Material | Stainless Steel Nickel |
| Shell Size | 23 (H) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Military Spec |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
| VAD | 72 Hours |
