Eaton Souriau

D38999/26FB98PN

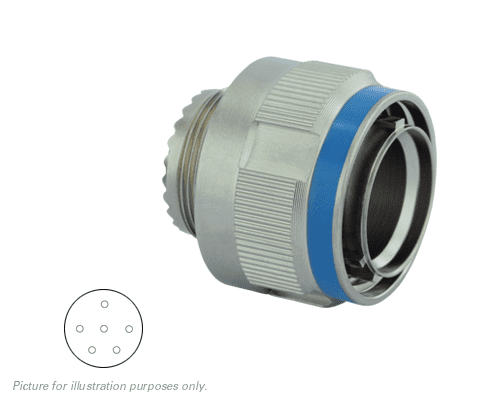

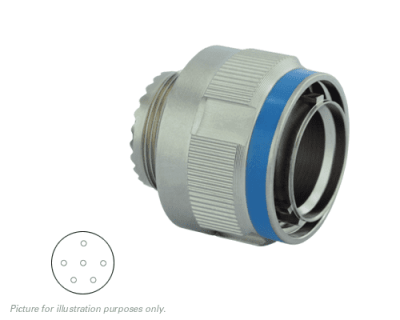

D38999/26FB98PN / 8D511F98PN, Plug with RFI Shielding, Shell Size 11 with Aluminium Nickel Plating, 6#20 Pin Contacts.

Ordering Information

465 in stock (can be backordered)

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerEaton Souriau
SeriesMIL-DTL-38999 Series III
Contact GenderPin - Male
Contact Size6#20
No of Contacts6
Insert Arrangement11-98
Insert KeywayN
Shell Size11 (B)
Shell MaterialAluminium Alloy

Environmental Specifications

SealingIP67
Operating Temperature-65°C to +200°C / -85°F to +392°F
RoHS CompliantYes

Quality & Compliance

QualifiedYes - Military Spec
SpecificationMIL-DTL-38999 Series III - EN3645 - BACC63CT/CU -BACC63DB/DC
VAD48 Hours
