D38999/26FD5SC

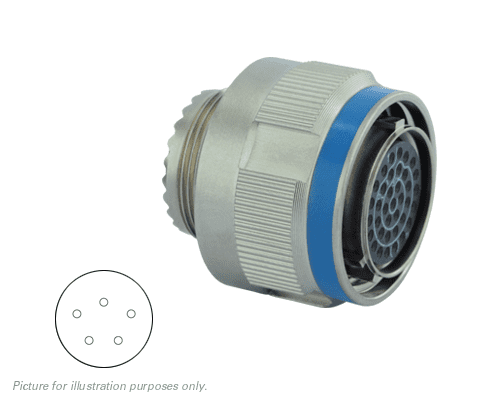

D38999/26FD5SD / 8D515F05SD, Plug with RFI Shielding, Shell Size 15 with Aluminium Nickel Plating,5#16 Socket Contacts,D Orientation.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Plug with RFI Shielding |
| Contact Gender | Socket – Female |
| Contact Size | 5#16 |
| Contacts Supplied | Yes |
| Insert Keyway | C |
| Insert Arrangement | 15-05 |
| No of Contacts | 5 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Electroless Nickel (F) |
| Shell Size | 15 (D) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Military Spec |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
