D38999/26MA98AN

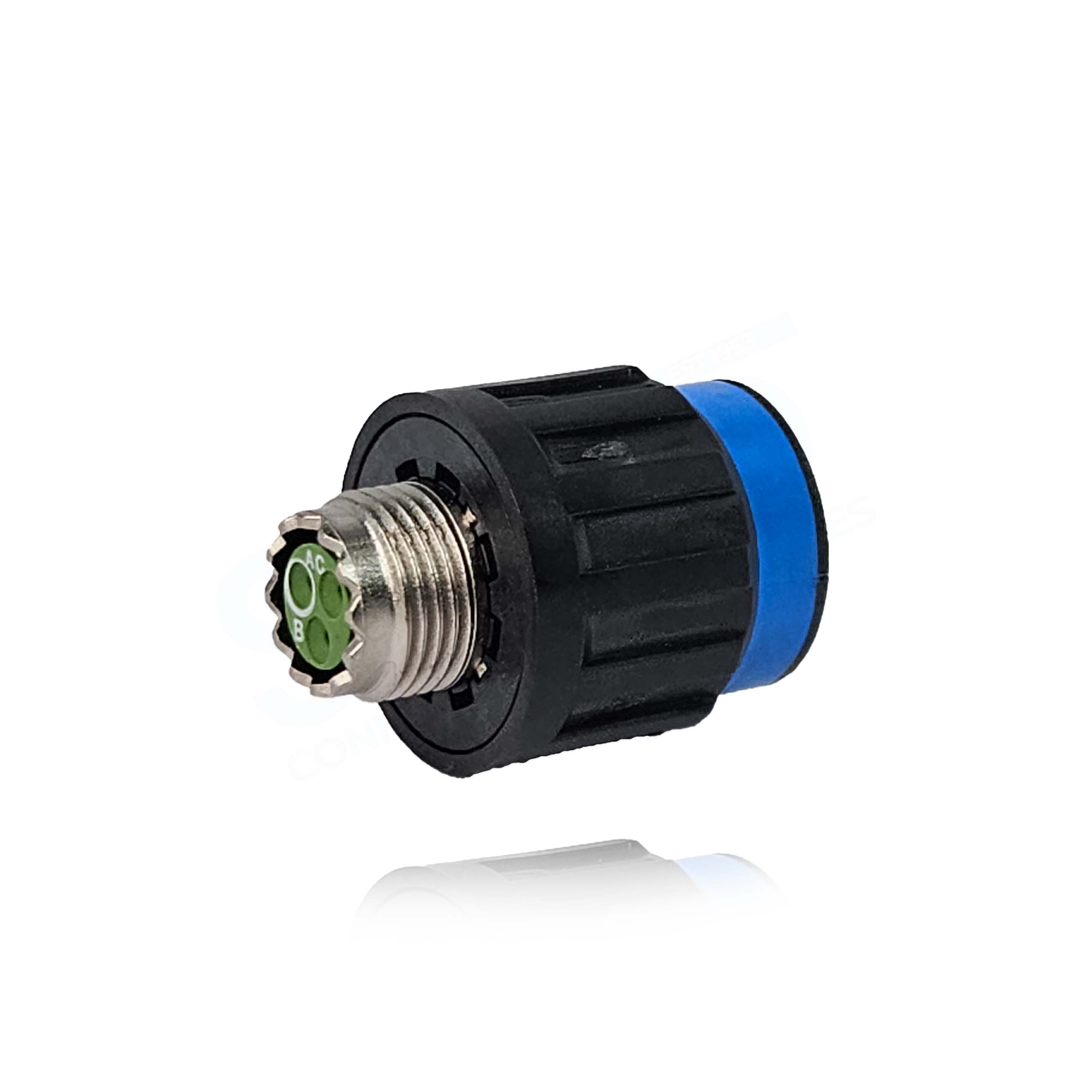

D38999/26MA98AN / 8D509M98AN, Plug with RFI Shielding, Shell Size 09 with Nickel Composite Plating, Less 3#20 Pin Contacts.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Plug with RFI Shielding |
| Contact Gender | Less Pin Contacts |
| Contact Size | 3#20 |
| Contacts Supplied | No |
| Insert Keyway | N |
| Insert Arrangement | 09-98 |
| No of Contacts | 3 |
| Shell Material | Composite Nickel |
| Shell Size | 09 (A) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Military Spec |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
| VAD | 48 Hours |
