D38999/26WE26AA

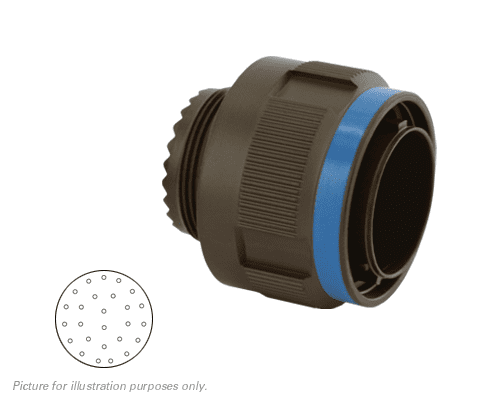

D38999/26WE26AA / 8D517W26AA, Plug with RFI Shielding, Shell Size 17 with Olive Drab Cadmium Plating, 26#20 Less Pin Contacts, A Orientation.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Plug with RFI Shielding |
| Contact Gender | Less Pin Contacts |
| Contact Size | 26#20 |
| Contacts Supplied | No |
| Insert Keyway | A |
| Insert Arrangement | 17-26 |
| No of Contacts | 26 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Cadmium Olive Drab (W) |
| Shell Size | 17 (E) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | No |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Military Spec |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
| VAD | 48 Hours |
