Eaton Souriau

D38999/26ZE6SN

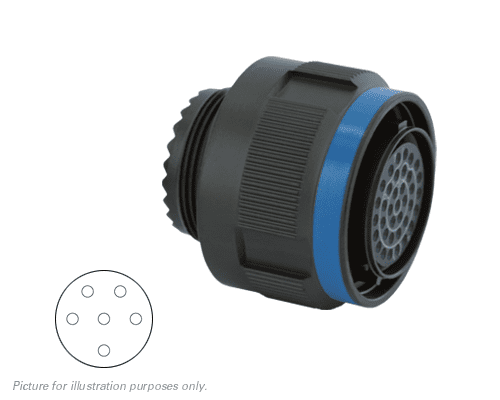

D38999/26ZE6SN / 8D517Z06SN, Plug with RFI Shielding, Shell Size 17 with Black Zinc Nickel Plating, 6#12 Socket Contacts.

Ordering Information

41 in stock (can be backordered)

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerEaton Souriau
SeriesMIL-DTL-38999 Series III
Connector StylePlug with RFI Shielding
Contacts SuppliedYes
Contact GenderSocket - Female
Contact Size6#12
No of Contacts6
Termination MethodCrimp
Insert Arrangement17-06
Insert KeywayN
Shell Size17 (E)
Shell MaterialAluminium Alloy
Shell PlatingBlack Zinc Nickel (Z)

Environmental Specifications

SealingIP67
Operating Temperature-65°C to +200°C / -85°F to +392°F
RoHS CompliantYes

Quality & Compliance

QualifiedYes - Military Spec
SpecificationMIL-DTL-38999 Series III - EN3645 - BACC63CT/CU -BACC63DB/DC
VAD48 Hours
