Fujikura (FJK)

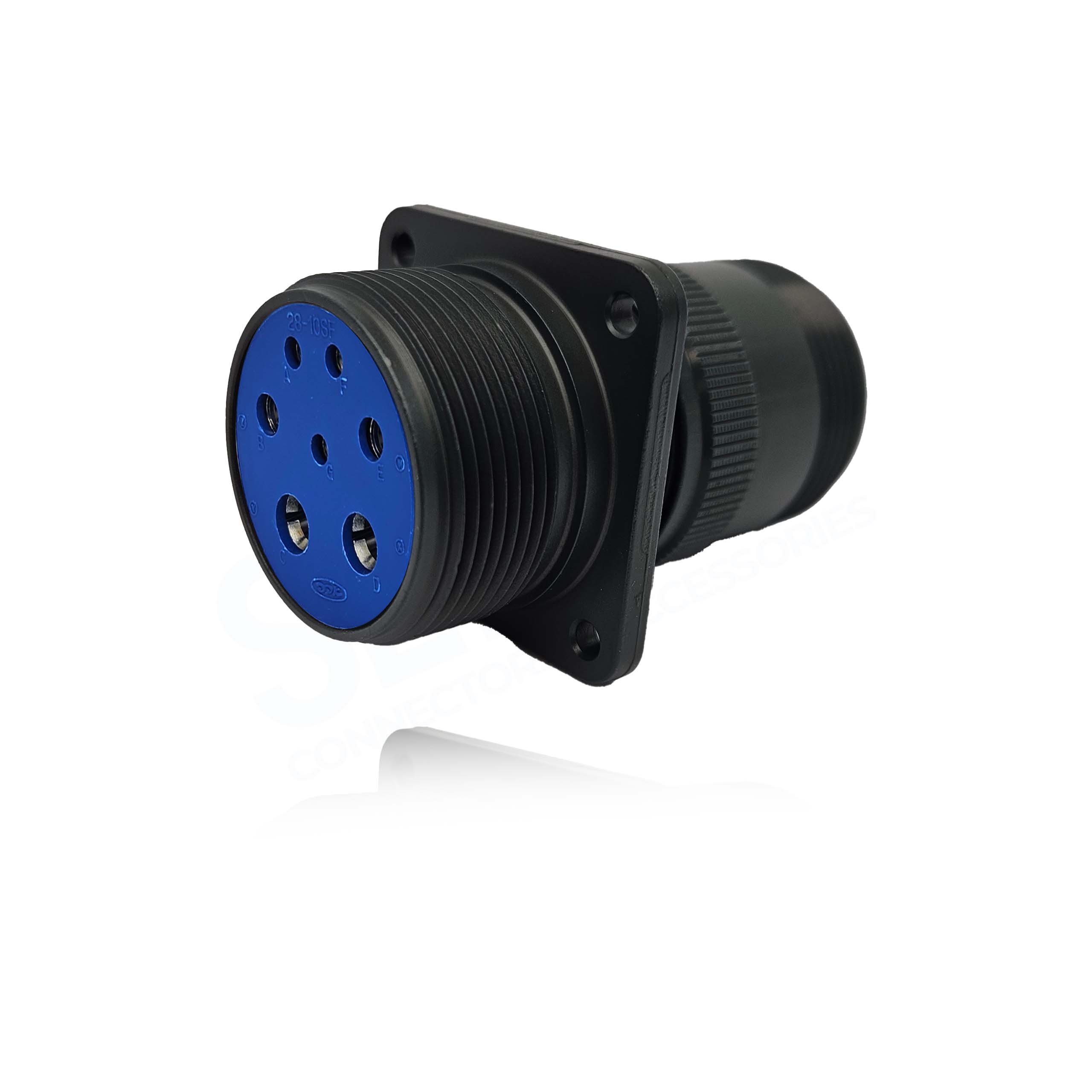

Fujikura, D/MS3100A28-10S, Wall Mounting Receptacle, 2 size 4, 2 size 8 and 3 size 12 Socket Contacts, Shell Size 28, Black Trivalent Chromate. For use in Aerospace, Industrial and Welding.

DMS3100A28-10SW

D/MS3100A28-10SW Wall Mount Receptacle, Black Trivalent Chromate, Shell Size 28 with 2#4, 2#8, 3#12 Socket Contacts, W Orientation.

RoHS: Yes Delivery: 24 Hour Build
RoHS Compliant: Yes

Ordering Information

28 in stock (can be backordered)

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerFujikura (FJK)
Connector StyleWall Mount Receptacle
Contact GenderSocket – Female
Contact PlatingSilver (Standard)
Contact Size2#4, 2#8, 3#12
Contacts SuppliedYes
Coupling StyleThreaded
Insert KeywayW
Insert Arrangement28-10
No of Contacts7
Shell MaterialAluminium Alloy / Zinc
Shell PlatingTrivalent Chromium Treatment (Black)
Shell Size28
Termination MethodSolder

Environmental Specifications

Operating Temperature– 55°C – + 125°C – -67°F – +257°F
RoHS CompliantYes
Insulation Resistance5000MΩ min. at 500V DC

Quality & Compliance

QualifiedMIL-DTL-5015
SeriesD/MS A/B
