Fujikura (FJK)

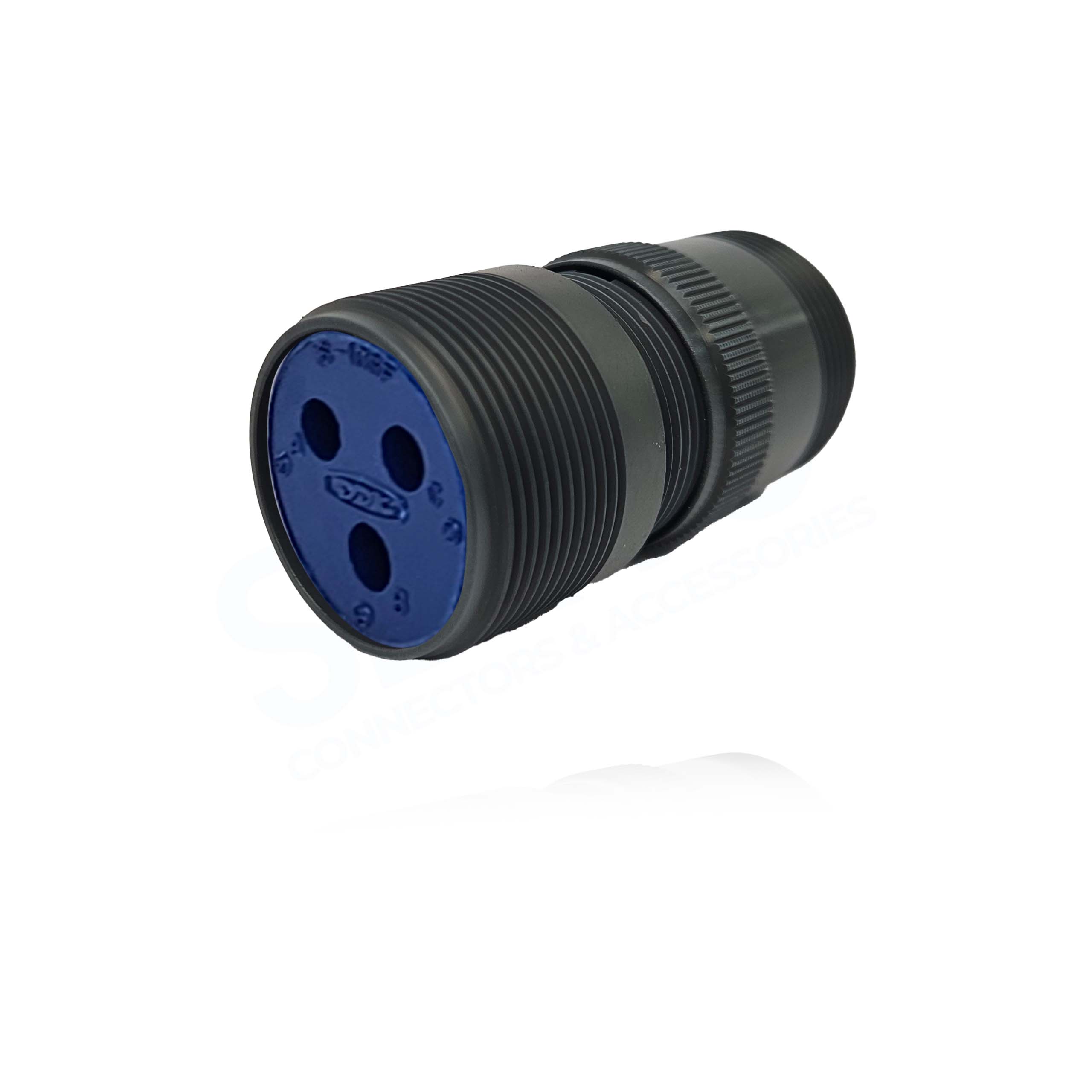

Fujikura, D/MS3101A16-10S, Cable Connecting Receptacle, 3 size 12 Socket Contacts, Shell Size 16, Black Trivalent Chromate.

DMS3101A16-10SX

D/MS3101A16-10SX Cable Connecting Receptacle, Trivalent Chromate, Shell Size 16 with 3#12 Socket Contacts, X Orientation.

Click on part number below to check availabilty of accessory:

Dust Cap D/MS25043-16DK

RoHS Compliant: Yes

Ordering Information

Available to order

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerFujikura (FJK)
Connector StyleCable Connecting Receptacle
Contact GenderSocket – Female
Contact PlatingSilver (Standard)
Contact Size3#12
Contacts SuppliedYes
Coupling StyleThreaded
Insert KeywayX
Insert Arrangement16 – 10
Shell MaterialAluminium Alloy / Zinc
Shell Size16
Termination MethodSolder

Environmental Specifications

Operating Temperature– 55°C – + 125°C – -67°F – +257°F
RoHS CompliantYes
Insulation Resistance5000MΩ min. at 500V DC

Quality & Compliance

QualifiedMIL-DTL-5015
SeriesD/MS A/B
