DMS3101A18-19SY

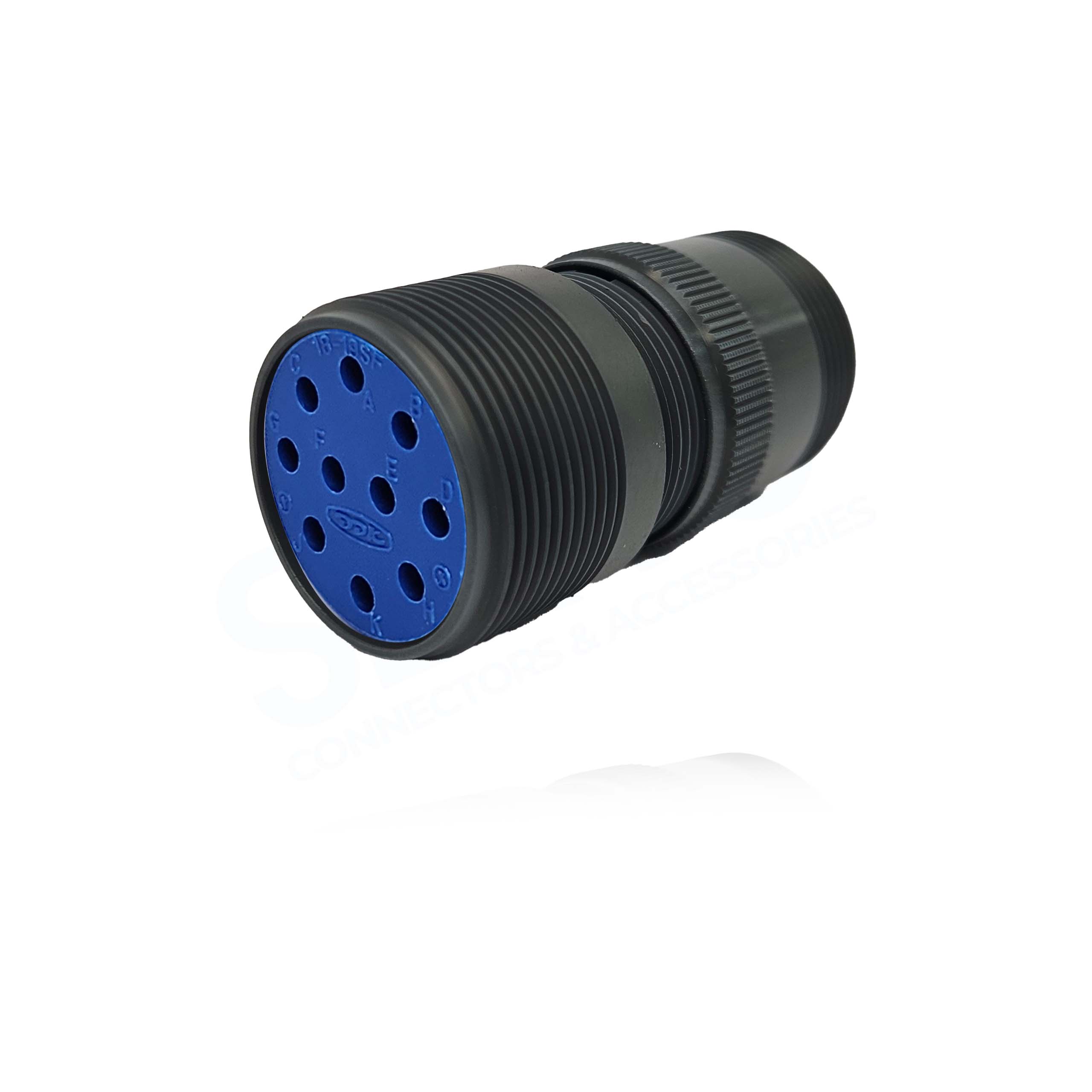

D/MS3101A18-19SY Cable Connecting Receptacle, Trivalent Chromate, Shell Size 18 with 10#16 Socket Contacts, Y Orientation.
| RoHS: Yes Delivery: 24 Hour Build |
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Fujikura (DDK) |
|---|---|
| Connector Style | Cable Connecting Receptacle |
| Contact Gender | Socket – Female |
| Contact Plating | Silver (Standard) |
| Contact Size | 2#12, 7#16 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | Y |
| Insert Arrangement | 18-19 |
| No of Contacts | 10 |
| Shell Material | Aluminium Alloy / Zinc |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | 18 |
| Termination Method | Solder |
Environmental Specifications
| Operating Temperature | – 55°C – + 125°C – -67°F – +257°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | MIL-DTL-5015 |
|---|---|
| Specification | MIL-DTL-5015 |
| Series | D/MS A/B |
