Manufacturer

Angle

Straight

Colour

Black

Connector Style

Cable Connecting Receptacle

Contact Gender

Pin – Male

Contact Plating

Silver (Standard)

Contact Size

1#4, 14#12, 14#16, 2#8

Contacts Supplied

Yes

Coupling Style

Threaded

Insert Keyway

W

Insert Arrangement

36-9

No of Contacts

31

Insulation Resistance

5000M? min. at 500V DC

Qualified

MIL-DTL-5015

RoHS Compliant

Yes

Series

D/MS A/B

Shell Material

Shell Plating

Trivalent Chromium Treatment (Black)

Shell Size

Specification

MIL-DTL-5015

Termination Method

Solder

Operating Temperature

– 55?C – + 125?C – -67?F – +257?F

Fujikura (DDK)

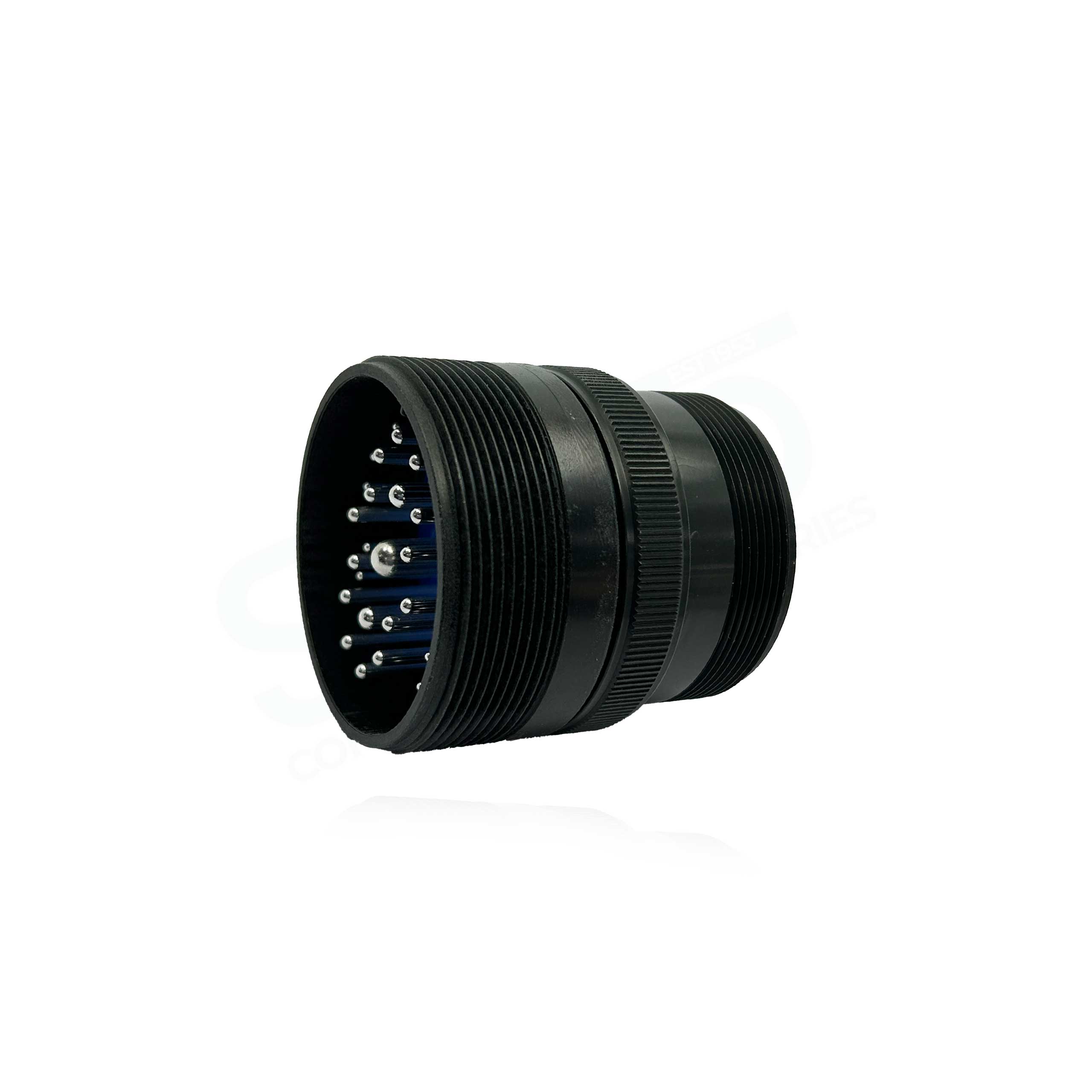

D/MS3101A36-9PW

D/MS3100A36-9PW Cable Connecting Receptacle, Black Trivalent Chromate, Shell Size 36 with 1#4, 2#8, 14#12, 14#16 Pin Contacts, W Orientation.
10% Promo Pricing Until 10th October

Manufacturer: Fujikura
RoHS:
Datasheet: D/MS3101A36-9PW Datasheet
Additional:

12 in stock (can be backordered)

Datasheet

DMS Datasheet

Insert Arrangement

36 9 Contact Layout DMS5015

Mating Products

dms3106a36 9S D/MS3106A36-9SW

Straight Plug 36 SOCKET

dms3106b36 9S D/MS3106B36-9SW

Straight Plug, Split Backshell 36 SOCKET

dms3108b36 9S D/MS3108B36-9SW

Right Angle Plug, Split Backshell 36 SOCKET

Accessories

DMS25043 Dust Cap
Dust Cap

D/MS3057-36DK
