Fujikura (FJK)

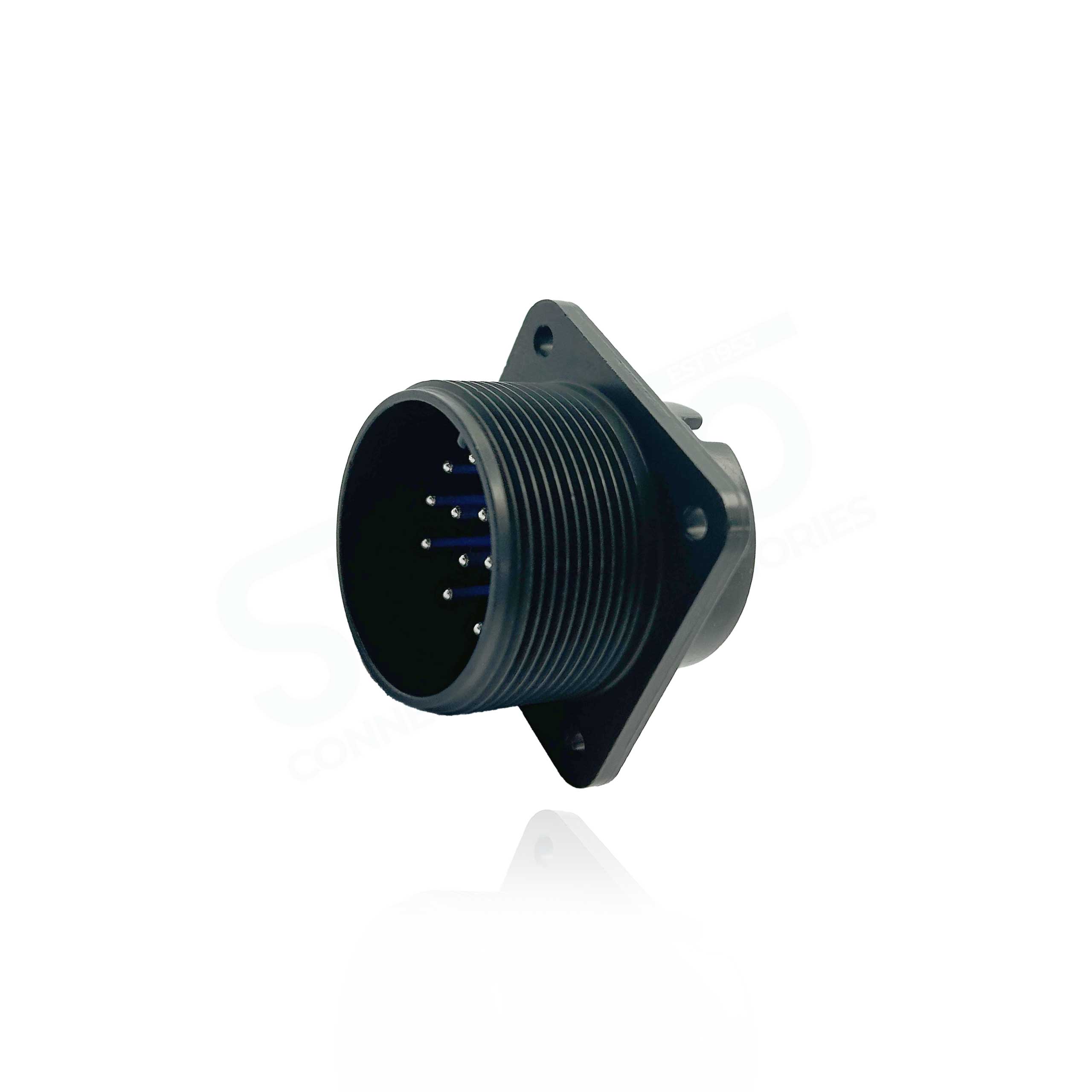

Fujikura, D/MS3102A22-19P, Box Mounting Receptacle, 14 size 16 Pin Contacts, Shell Size 22, Black Trivalent Chromate.

DMS3102A22-19PX

D/MS3102A22-19PX Box Mount Receptacle, Black Trivalent Chromate, Shell Size 22 with 14#16 Pin Contacts, X Orientation.

RoHS: Yes
Delivery: 24 Hour Build
RoHS Compliant: Yes

Ordering Information

Available to order

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerFujikura (FJK)
Connector StyleBox Mount Receptacle
Contact GenderPin – Male
Contact PlatingSilver (Standard)
Contact Size14#16
Contacts SuppliedYes
Coupling StyleThreaded
Insert KeywayX
Insert Arrangement22-19
No of Contacts14
Shell MaterialAluminium Alloy / Zinc
Shell PlatingTrivalent Chromium Treatment (Black)
Shell Size22
Termination MethodSolder

Environmental Specifications

Operating Temperature– 55°C – + 125°C – -67°F – +257°F
RoHS CompliantYes
Insulation Resistance5000MΩ min. at 500V DC

Quality & Compliance

QualifiedMIL-DTL-5015
SeriesD/MS A/B
