Fujikura (FJK)

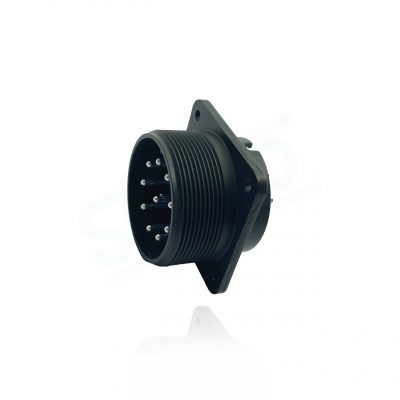

Fujikura, D/MS3102A28-20P, Box Mounting Receptacle, 10 size 12 and 4 size 16 Pin Contacts, Shell Size 28, Black Trivalent Chromate.

DMS3102A28-20PW

D/MS3102A28-20PW Wall Mount Receptacle, Black Trivalent Chromate, Shell Size 28 with 10#12, 4#16 Pin Contacts, W Orientation.

RoHS: Yes
Delivery: 24 Hour Build
RoHS Compliant: Yes

Ordering Information

23 in stock (can be backordered)

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerFujikura (FJK)
Connector StyleBox Mount Receptacle
Contact GenderPin – Male
Contact PlatingSilver (Standard)
Contact Size10#12, 4#16
Contacts SuppliedYes
Coupling StyleThreaded
Insert KeywayW
Insert Arrangement28-20
No of Contacts14
Shell MaterialAluminium Alloy / Zinc
Shell PlatingTrivalent Chromium Treatment (Black)
Shell Size28
Termination MethodSolder

Environmental Specifications

Operating Temperature– 55°C – + 125°C – -67°F – +257°F
RoHS CompliantYes
Insulation Resistance5000MΩ min. at 500V DC

Quality & Compliance

QualifiedMIL-DTL-5015
SeriesD/MS A/B
